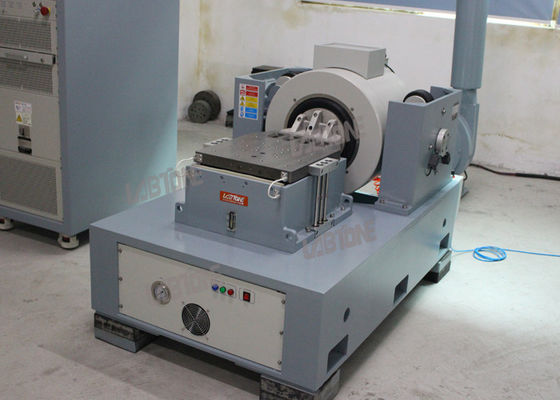

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table
High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table

Large Image :  High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30-45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table

Description
Rated Sine Force: 10 KN Random Force: 10 KN
Shock Force: 20 KN Max. Acceleration: 100 G
Max. Velocity: 300 Cm/s Max. Displacement: 38 Mm
Cooling Way: Air Cooling Power: Electronic
High Light:

vibration testing equipment

,

vibration shaker system



Air-cooled High Frequency Electro Dynamic Shaker with Vertical Horizontal Table





Dynamic vibration shaker is used to detect failure in an early stage, perform simulated assessment of actual operating conditions and structural strength tests, characterized by wide application, and notable and reliable test effects.



Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.


Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Potoelectronics, Instrument etc.



Function:

  • Vibration testing
  • Mechanical impedance measurements
  • Educational demonstrations
  • Structural response testing
  • Modal analysis
  • separation and compacting of powders
  • small component vibration screening
  • Vibration transducer calibration



Working Principle:



High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table 0

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table 1



Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Detailed Pictures:

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table 2

High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table 3



Packaging:

Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
High Frequency Electro Dynamic Shaker Air - Cooled With Vertical Horizontal Table 4



Our Services:

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label
