Product Details:
|
| Rated Sine Force: | 40 KN | Random Force: | 40 KN |
|---|---|---|---|
| Frequency: | 2-2500 Hz | Max. Acceleration: | 100G |
| Max. Velocity: | 200cm/s | Max. Displacement: | 50 Mm |
| Payload: | 800 Kg | Vibration Generator Dimension: | 1400*980*1100 Mm |
| High Light: | vibration testing equipment,vibration testing services |
||

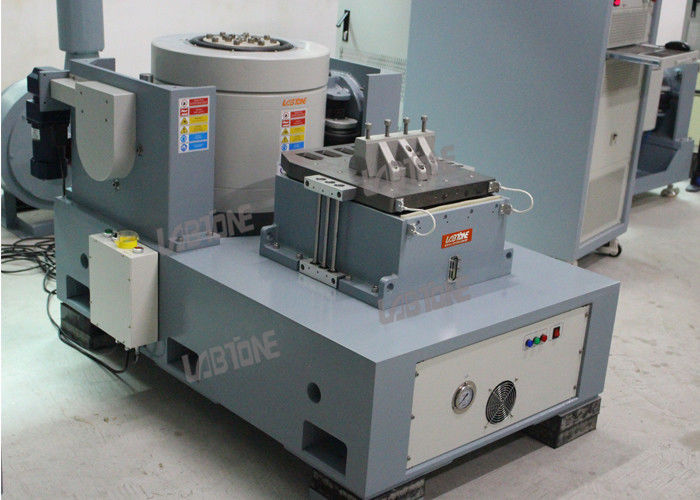

ISTA Transported Simulation Vibration Shock Testing System For Auto parts test
Vibration testing is done to introduce a forcing function into a structure, usually with the use of a vibration test shaker or vibration testing machine. These induced vibrations, vibration tests, or shaker tests are used in the laboratory or production floor for a variety of things, including qualifying products during design, meeting standards, regulatory qualifications, fatigue testing, screening products, and evaluating performance.
Specifications: EV232-EV330
| Model | EV232 | EV240 | EV250 | EV260 | EV320 | EV330 |
| Vibration Generator | VG300/25 | VG4000/50 | VG5000/50 | VG6000/50 | VG2000/76 | VG3000/76 |
| Frequency(Hz) | 2-2500 | 2-2500 | 2-2500 | 2-2500 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 3200 | 4000 | 5000 | 6000 | 2000 | 3000 |
| Max. Displacement (mmp-p) | 50 | 50 | 50 | 50 | 76 | 76 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 80 | 80 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 500 | 800 | 1000 | 1000 | 1000 | 1000 |
| Armature Mass(kg) | 30 | 40 | 50 | 50 | 25 | 35 |
| Armature Diameter(mm) | φ400 | φ400 | φ450 | φ450 | φ320 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 2000 | 2500 | 3500 | 3800 | 2000 | 3000 |
| Vibration Generator Dimension L*W*H(MM) | 1400*900*1100 | 1400*980*1100 | 1600*1120*1340 | 1600*1120*1340 | 850*1000*1100 | 1100*1300*1440 |
| Power Amplifier | Amp35k | Amp50k | Amp60k | Amp70k | Amp30k | Amp45k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 550 | 600 | 800 | 1000 | 550 | 600 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 45 | 64 | 85 | 95 | 40 | 60 |
Technical Parameters of Horizontal Expander:
Vertical electromagnetic shaker is unable to test the heavy and large specimen, and the high position of center of gravity will cause sideslip, tumbling and overturning moment and this will always overstress the suspension system of shaker and damage the system. Therefore, need for slip table system for vibration testing is increasing to allow the testing to be done horizontally so that the system can withstand larger and heavier load.
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |
Detailed Pictures:
