200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE

China 200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE supplier
200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE supplier 200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE supplier 200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE supplier

Large Image :  200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: KDT2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Or Polywood Case
Delivery Time: 30-35 Work Days
Supply Ability: 50 Sets / Month
Contact Now
Detailed Product Description
Product Name: Drop Test Machine Power Required: AC220V / 50Hz
Compressed Air: 0.5 Mpa-0.7 Mpa Lifting Device: Customer Supplied
Machine Weight: 16 Kg Machine Size: 345 X 235 X 145 Mm
Weight Capacity: 200kg~1500kg

Electronically Operated Drop Tester Release Hooks Drop Test Machine





Introduction



The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads which cannot be tested on conventional drop test machines.



The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.





Technical Specification



Weight Capacity 200kg~1500kg
Power Required AC220V / 50Hz ( or according to customer’s need)
Compressed Air 0.5Mpa~0.7Mpa
Lifting Device Customer Supplied
Weight of KDT2000 11kg ( excluding foot-switch, which is 5kg)
Size of KDT2000 345 x 235 x 145 mm
Size of foot-switch 270 x 200 x220 mm ( Lx D x H)





Features



  • High strength aluminum construction for durability and ruggedness
  • Heavy duty industrial solenoid designed for quiet operation and long life
  • Hardened steel cam rollers ensure a vertical drop
  • Positive lock design will not release load in the event of power loss
  • Self-lubricating low friction bearings in latch jaws and linkage
  • Forged steel eyebolt provides convenient lifting point
  • Footswitch is covered by a metal guard to prevent accidental activation
  • Footswitch detaches for convenient set-up and storage





Packaging & Shipping



Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc





Detailed Picture

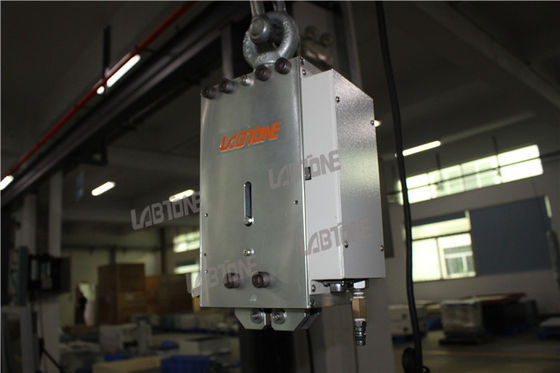

200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE

200kg~1500kg Hooks Drop Test Machine Electronically Operated LABTONE
