Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads

Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads
Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads

Large Image :  Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: KDT2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Or Polywood Case
Delivery Time: 30-35 Work Days
Supply Ability: 50 Sets / Month

Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads

Description
Weight Capacity: 200kg~1500kg Power Required: AC220V / 50Hz
Compressed Air: 0.5 Mpa-0.7 Mpa Lifting Device: Customer Supplied
Machine Weight: 16 Kg Machine Size: 345 X 235 X 145 Mm
High Light:

quick release drop tester

,

quick release hook drop test

Industrial Safety Quick Release Hook Drop Test For Heavy Payloads






Quick Release Hook Drop Test Introduction



The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads which cannot be tested on conventional drop test machines.



The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or other lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.





Technical Specification



Weight Capacity: 200kg~1500kg

Power Required: AC220V / 50Hz ( or according to customer’s need)

Compressed Air: 0.5Mpa~0.7Mpa

Lifting Device: Customer Supplied

Weight of KDT2000 : 11kg ( excluding foot-switch, which is 5kg)

Size of KDT2000: 345 x 235 x 145 mm

Size of foot-switch: 270 x 200 x220 mm ( Lx D x H)





Features



  • High strength aluminum construction for durability and ruggedness
  • Heavy duty industrial solenoid designed for quiet operation and long life
  • Hardened steel cam rollers ensure a vertical drop
  • Positive lock design will not release load in the event of power loss
  • Self-lubricating low friction bearings in latch jaws and linkage
  • Forged steel eyebolt provides convenient lifting point
  • Footswitch is covered by a metal guard to prevent accidental activation
  • Footswitch detaches for convenient set-up and storage



Detailed Picture

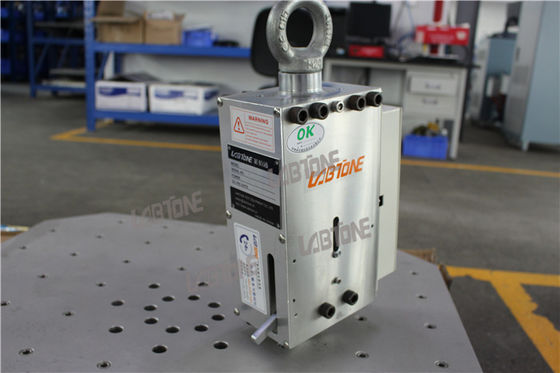

Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads 0

Industrial Safety Quick Release Hook Drop Test For Big Size Heavy Payloads 1
