Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3

Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3
Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3 Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3 Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3

Large Image :  Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3

Product Details:
Place of Origin: Dongguan,China
Brand Name: LABTONE
Certification: CE, ISO
Model Number: EV211
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30-35 working days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets Per Month
Contact Now

Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3

Description
Sine Force:: 1100kg.f(10kN) Shock Force:: 2200kg.f(22kN)
Random Force:: 1100kg.f(11kN) Max Velocity:: 2.0m/s
Displacement:: 51mm Payload:: 300kg
Highlight:: Electrodynamic Vibration Shaker System, Vibration Testing Equipment
Highlight:

UN38.3 compliant vibration test machine

,

capacitor vibration test system

,

battery vibration tester for resistors

Vibration Test System Description



A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection





Item Configuration Qty.
A Vibration shaker
  A11S24 shaker ((including Pneumatic Centering Controller) 1 set
  B402S blower (including silencer and Duct ) 1 set
  Horizontal slip table HG50M 1 set
  Head Expander VT50CM 1 set
B Power Amplifier
  LA10K power amplifier(including Field power supply) 1 set
C.

Vibration Controller-Vcs-2

(Including Hardware and Control Functions Program software CDS


  Accelerometer (Including Length 7m low noise BNC-M5 cable) 1 set
  Computer(Including keyboard, mouse and monitor) 0 set
D

Documentation

Operation Manual, Test Report, Packing List

 1 set
E Accessories
  Maintenance Tools 1 set
  Standard Spare Parts 1 set




Features

  1. Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  2. Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
  3. High efficiency D class power switching, 3-sigma peak current, harmonic distrotion.
  4. Quick self-diagnosis with safety interlock, high safety reliability.
  5. Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
  6. Horizontal and vertical expansion platforms for different applications.
  7. Simple controller operation.

Vibration Shaker System Capabilities

Shaker Specifications
Peak Sine (Pk) 1100Kg.f peak (11KN)
Random (RMS) 1100Kg.f rms (11KN) @ISO5344
Shock (Pk) 2200Kg.f peak (22KN) @6ms
Usable Frequency DC～3300Hz
Maximum Displacement (p-p) 51mm (2inch)
Max. velocity 2m/s
Max. acceleration Sine:100g (980 m/s2)；Random: 60G (588 m/s2)
Vertical Load Support 300 kg@0.7 MPa

Body Suspension Natural

Frequency (Thrust Axis)

 Less than 2.5 Hz
Armature Diameter Ф240 mm
Armature Weight 11kg

Fundamental Resonance

Frequency (Bare table)

 2,600 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

 16 stainless steel M10 Inserts
Stray Flux Density ＜10gauss
Shaker dimensions 885X745x785mm
Weight of Shaker 1300kg
Power Amplifier Specifications LA10K
Rated Output Capacity 10KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 615mmL×920mmD×1520mmH





Picture details:

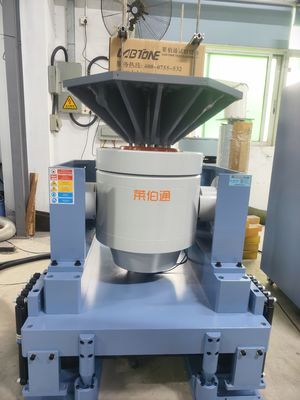

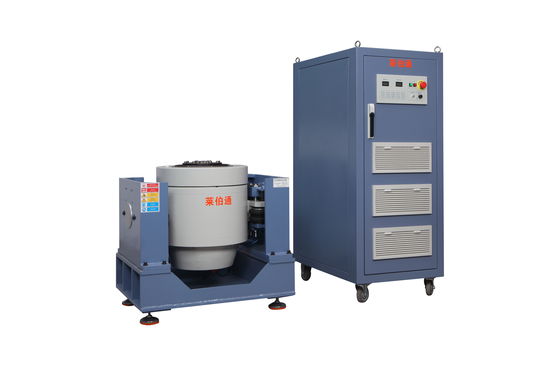

Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3 0

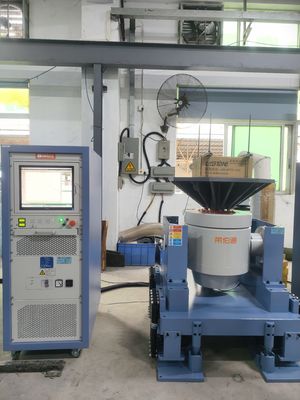

Vibration Test Machine for Capacitors, Resistors, and Batteries Meeting UN38.3 1
