MIL STD 810G Electrodynamic Shaker For Laboratory Tests Transporation Simulation includes Sine, Random, Shock Test

Large Image : MIL STD 810G Electrodynamic Shaker For Laboratory Tests Transporation Simulation includes Sine, Random, Shock Test

Product Details:

Place of Origin:	Dongguan,China
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	EV211
Document:	ISO 8813-package sine vibra...st.pdf

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	30-35 working days
Payment Terms:	L/C, T/T
Supply Ability:	15 Sets Per Month

Contact Now

MIL STD 810G Electrodynamic Shaker For Laboratory Tests Transporation Simulation includes Sine, Random, Shock Test

Description

Sine Force::	1100kg.f(10kN)	Shock Force::	2200kg.f(22kN)
Amplitude::	51mm	Max Velocity::	2.0m/s
Highlight::	Electrodynamic Vibration Shaker System, Vibration Testing Equipment
Highlight:	MIL STD 810G electrodynamic shaker , laboratory vibration test system , transportation simulation shaker with warranty

Vibration Test System Description

A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection

Item	Configuration	Qty.
A	Vibration shaker
	A11S24 shaker ((including Pneumatic Centering Controller)	1 set
	B402S blower (including silencer and Duct )	1 set
	Horizontal slip table HG50M	1 set
	Head Expander VT50CM	1 set
B	Power Amplifier
	LA10K power amplifier(including Field power supply)	1 set
C.	Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS
	Accelerometer (Including Length 7m low noise BNC-M5 cable)	1 set
	Computer(Including keyboard, mouse and monitor)	0 set
D	Documentation Operation Manual, Test Report, Packing List	1 set
E	Accessories
	Maintenance Tools	1 set
	Standard Spare Parts	1 set

Features

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
High efficiency D class power switching, 3-sigma peak current, harmonic distrotion.
Quick self-diagnosis with safety interlock, high safety reliability.
Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
Horizontal and vertical expansion platforms for different applications.
Simple controller operation.

Specifications

Model	EV211
Max Sine Force (kg.f)	1100
Frequency Range (Hz)	1~3300
Max Displacement (mmp-p)	51
Max Acceleration (g)	100
Max Velocity (m/s)	2
Max Load (kg)	300
Armature Weight (kg)	11
Armature Diameter (mm)	240
Shaker Dimensions LWH (mm)	915740780
Shaker Weight (kg)	890

Picture details:

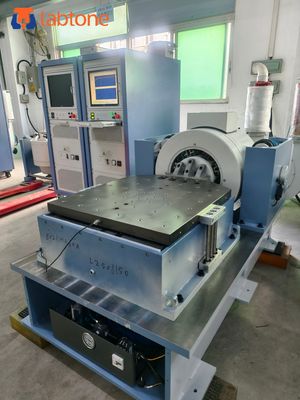

MIL STD 810G Electrodynamic Shaker For Laboratory Tests Transporation Simulation includes Sine, Random, Shock Test 0

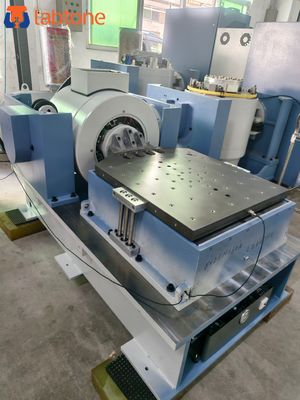

MIL STD 810G Electrodynamic Shaker For Laboratory Tests Transporation Simulation includes Sine, Random, Shock Test 1
