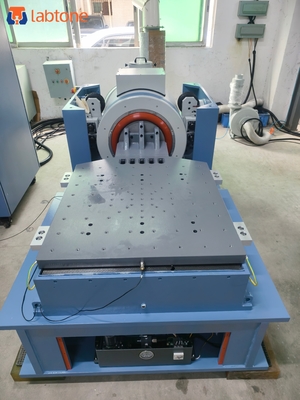

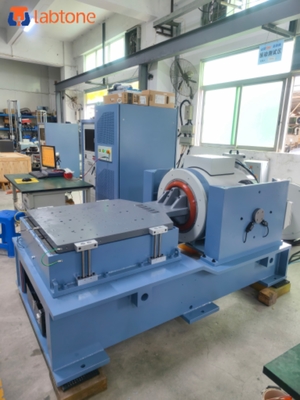

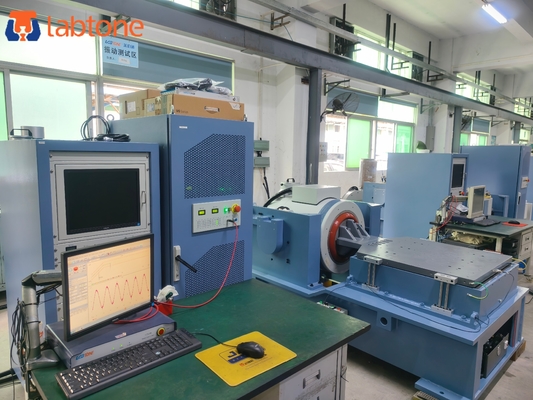

Product Description:
The Vibration Validation System is a reliable and advanced Vibration Test System designed for accurate and efficient vibration testing applications. This system is equipped with a powerful Vibration Controller that offers 2 Channels Input capability, allowing for versatile testing setups and precise control over vibration parameters.
With a comprehensive Software package included, this Vibration Measurement System supports a variety of testing options, including Sine, Random, and Classic Shock modes. This enables users to conduct a wide range of vibration tests to meet different industry standards and requirements.
The Vibration Test System features a robust design with an Armature Weight of 24kg, ensuring stability and durability during testing procedures. Additionally, the Machine Weight of 1920 Kg provides a solid and secure foundation for conducting accurate and repeatable tests.
One of the key highlights of this Vibration Testing Equipment is its impressive Max Acceleration capability of 92g. This high acceleration capacity allows for testing under extreme conditions and ensures that the system can accurately simulate real-world vibration scenarios.
Whether you are conducting research and development, quality control, or product validation testing, the Vibration Validation System offers the precision and reliability needed to ensure the integrity and performance of your products. With its user-friendly interface and versatile testing capabilities, this Vibration Test System is ideal for a wide range of industries, including aerospace, automotive, electronics, and more.
Technical Parameters:
| Maximum Sine Force |
2200kg.f (22kN) |
| Software |
Sine, Random, Classic Shock |
| Amarture Diameter |
340 mm |
| Product Name |
Vibration Test System |
| Armature Weight |
24kg |
| Frequency Range |
1 - 3000 Hz |
| Vibration Controller |
2 Channels Input |
| Machine Weight |
1920 Kg |
| Max Acceleration |
92g |
| Overall Dimensions |
1080L×920D×950H mm |
Applications:
The LABTONE Vibration Test System, model EV222, is a top-of-the-line product designed and manufactured in CHINA. With its CE certification, this system is ideal for a wide range of Product Application Occasions and Scenarios.
Whether you need a Vibration Validation System for automotive components, a Vibration Measurement System for electronic devices, or a Vibration Verification System for aerospace parts, the EV222 is the perfect solution. The system's powerful capabilities make it suitable for industries such as automotive, electronics, aerospace, and more.
The minimum order quantity for this system is 1, and it comes packaged securely in a wooden case for safe transportation. With a delivery time of 30-40 days, you can quickly integrate this system into your testing processes. Payment terms are flexible, accepting T/T for convenience.
Operating on a 3-phase, AC 380V, 50/60Hz power supply, the Vibration Test System offers a Max. Displacement of 51mm and an Armature Weight of 24kg. The system's software includes Sine, Random, and Classic Shock modes, providing versatility for various testing requirements.
Support and Services:
Pre-sales:
Technical consultation: test method, laboratory planning and suggestion.
Equipment selection: selection scheme, FAQ.
Product testing scheme.
In-Sales:
Customer communication and progress report.
Guidance for pre-installation preparation, equipment commissioning and test run.
Calibration (when Third Party’s verification is required).
After-Sales:
Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
Technical support: special paid services are provided according to customer’s needs.
Packaging and Shipping for Vibration Test System:
The vibration test system should be packed in a sturdy cardboard box and secured with bubble wrap or foam to ensure a secure and safe delivery. The box should also be labeled with the product name and a detailed list of the components included in the box. Additionally, a packing slip should be included in the box to ensure that all components are accounted for upon arrival.The vibration test system should be shipped with a reliable and reputable carrier to ensure the product arrives in a timely manner and is not damaged during transit. The carrier should be able to track the package to ensure that it arrives at its destination safely.
FAQ:
Q1: What is a Vibration Test System?
A1: The principle of the vibration test system uses Fleming's left-hand rule. When a current is applied to a conductor that crosses a magnetic field, a force is generated in the rectilinear direction, and the vibration table vibrates due to this force (exciting force).
Q2: What is the purpose of Vibration Test System
Q3: Where is the Vibration Test System made?
A3: The Vibration Test System, model EV222, is made in China by LABTONE.
Q4: What type of tests can be done with the Vibration Test System?
A4: Type of Vibration Test(SINE, RANDOM, and SHOCK Tests)
Q5: How does the Vibration Test System work?
A5: The Vibration Test System, model number EV222, uses a combination of sensors and software to measure the effects of vibration on products. It measures the acceleration, velocity, and displacement of the product under test, and then records the results.
