Water Cooled Vibration Test System 20000kgf For Aerospace Meet NASA-STD

Large Image : Water Cooled Vibration Test System 20000kgf For Aerospace Meet NASA-STD

Product Details:

Place of Origin:	China
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	EVW3200

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	15 working days
Payment Terms:	L/C, T/T
Supply Ability:	45 Sets / Month

Contact Now

Water Cooled Vibration Test System 20000kgf For Aerospace Meet NASA-STD

Description

Sine Force::	200 KN (20000 Kg.f)	Shock Force:	400KN(40000Kg.f)
Frequency Range:	5-2,200 Hz	Max. Acceleration:	100g
Max. Displacement Peak-Peak:	76/63mm	Max. Payload(kg):	1000kg
Highlight:	Water cooled vibration test system , 20000kgf vibration test system , NASA-STD compliant vibration tester

Vibration Test Systems

EV series of electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and deve.

Water Cooled Vibration Test System 6000kgf -25000kgf
Model	EVW360	EVW390	EVW3100	EVW3120	EVW3160	EVW3200	EVW3250
Amplifier Model	LA60K	LA90K	LA100K	LA120K	LA160K	LA200k	LA250K
Shaker Model	E60T45	E90T45	E100T55	E120T55	E160T65	E200T65	E250T67
Rated Sine Force(KN/Kgf)	60/6000	90/9000	100/10000	120/120000	160/16000	200/20000	250/25000
Rated Shock Force(KN/Kgf)	120/12000	90/18000	200/20000	250/25000	320/32000	400/40000	500/50000
Frequency Range(Hz)	5-2,700	5-2,700	5-2,500	5-2,500	5-2,200	5-2,200	5-2,000
Max. Acceleration Sine/Random(g)	100/60	125/60	100/60	100/60	100/60	100/60	100/60
Max. Velocity(m/s)	2.0
Max. Displacement Peak-Peak(mm)	76/63
Max. Payload(kg)	1000, (optional2,000 )
Armature Diameter(mm)	450	450	550	550	650	650	670
Resonance Frequency (Hz)(±5%)	2,300	2,300	2,100	2,100	1,800	1,800	1,600
Effective Moving Mass(kg)	60	70	90	90	150	150	180
Blower	C1				C2
Blower Power	100	100	100	100	220	220	220
Blower Volume Flow Rate/Pressure	150L/min 0.25-0.4Mpa				200L/min 0.25-0.4Mpa
System Power	125	160	200	200	230	250	320

Meets Standards

IL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.

Key Applications:

Automotive parts and systems - qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screenin

Features

Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
Quick self-diagnosis with safety interlock, high safety reliability;
Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
Provide horizontal and vertical expansion platform for different application;
Simple controller operation.

Package

Bubble Bags + Vacuum Packing + Plywooden Cases

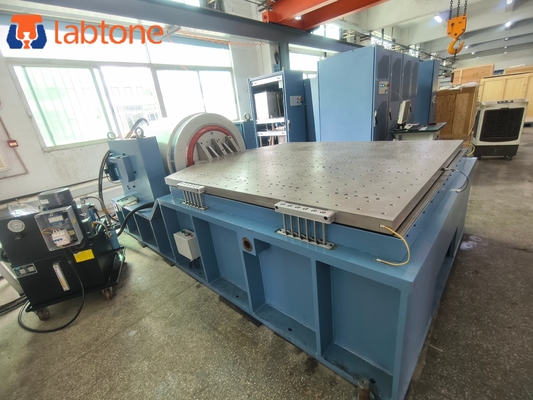

Water Cooled Vibration Test System 20000kgf For Aerospace Meet NASA-STD 0

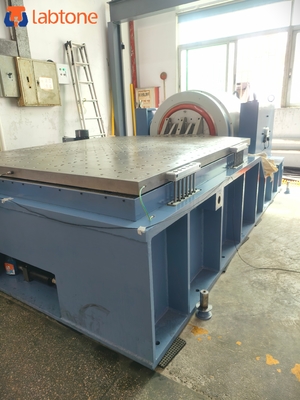

Water Cooled Vibration Test System 20000kgf For Aerospace Meet NASA-STD 1
