Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer

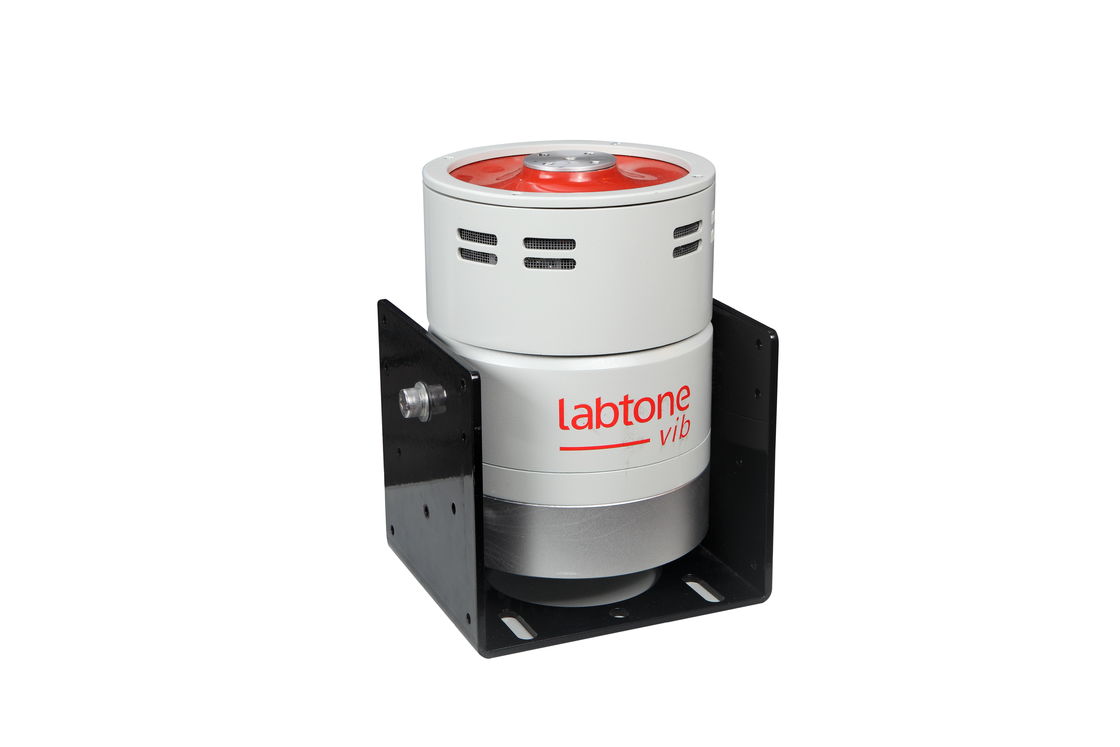

Large Image : Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer

Product Details:

Place of Origin:	CHINA
Brand Name:	LABTONE
Certification:	CE, ISO
Model Number:	EV1005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	Plywood Case with Vacuum Packing
Delivery Time:	30 working days
Payment Terms:	T/T
Supply Ability:	15 Sets Per Month

Contact Now

Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer

Description

Random Force::	55kg.f(550N)	Maximum Velocity::	160mm/s
Max Acceleration:::	30g	Maximum Displacement (p-p):	20 Mm
Cooling Method::	Air Cooling	Armature Weight:	1.7 Kg
Frequency Range:	5～5000Hz (Larger Frequencies Are Available)	Over All Dimension:	445mm L X 333mm D X 203mm H
Highlight:	Sine Force Vibration Test System , Accelerometer Vibration Test System , 500N Vibration Test System

Product Application

Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Equipment Configuration

Item	Configuration	Qty.
1.	Vibration shaker
	A005S12 Shaker	1 set
	Head Expander VT40CM	1 set
2.	Digital switch power amplifier
	PA501EF Power Amplifier	1 set
3.	Digital vibration controller
	Master unit of digital vibration controller	1 set
	System acceleration sensor	1 pcs
	Control software installation disc	1 set
4.	Attached accessories
	Extension cable and duct hose	1 set
	Operation instructions, inspection report, certificate, maintenance manual, etc.	1 set
	Attached special tools	1 set

Main Features

1) Apply to the calibration of high precision vibration meter, mechanical impedance test, and vibration analysis of the vibration source.
2) Apply to the vibration test of various small and lightweight parts such as sensors, electronic, electric machines and etc.
3) Apply to educational equipment for the basic test of vibration engineering.

Technical Parameters

Electrodynamic shaker
Max. sine exciting force	55Kg.f peak (550N)
Frequency range	5～5000Hz (Larger frequencies are available)
Max. displacement	20 mm p-p
Max. velocity	1.6 m/s
Max. acceleration	30 G (300 m/s²⁾
Vertical load support	20 kg
Armature diameter	Ф120 mm
Armature weight	1.7 kg
Over all Dimension	445mm L x 333mm D x 203mm H
Shaker weight	97 Kg
Cooling type	Air Cooling by inner axial fan
PA501EF Power Amplifier
Output power	900 VA
Amplifier cabinet dimension	430mm×200mm×500mm
Servo protection system
Functions:	FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP
Vibration controller
Hardware configuration:	2-channel inputs, 1-channel outputs
Control computer	1 set
Function	Sine Control, Random Control Language:English,Chinese
Operating system	Microsoft Windows 7/8/10
Acceleration sensor LAB	Frequency range:1-12KHz Sensitivity: 30 ±10 pC/g Temperature range: -40℃ to 160℃
Head Expander VT40CM
Table size	400x400mm
Material	Magnesium alloy
Frequency	Up to 2000Hz
Electrical requirements:
Power supply	AC 220V±10%, 50/60Hz, Single Phase, 900VA
Environment Requirements	Temperature: 0～40ºC Relative Humidity: 0～80%, non-condensing

Detailed Images:

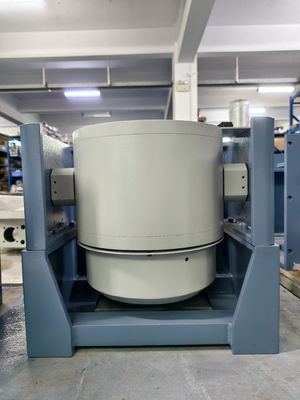

Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer 0

Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer 1
