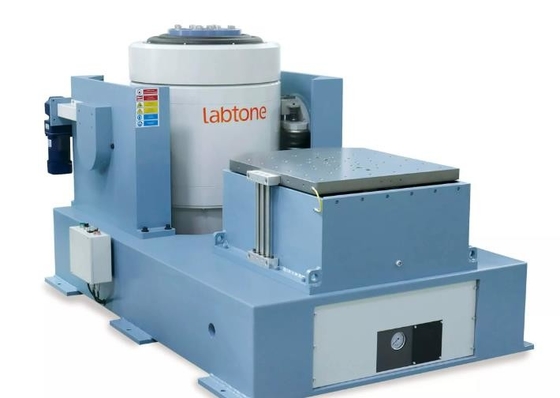

51mm Max Displacement Vibration Testing Equipment For Heavy Duty Vertical Load Support Up To 300kg Capacity

51mm Max Displacement Vibration Testing Equipment For Heavy Duty Vertical Load Support Up To 300kg Capacity

Large Image :  51mm Max Displacement Vibration Testing Equipment For Heavy Duty Vertical Load Support Up To 300kg Capacity

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE
Model Number: EV222
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: wooden case
Delivery Time: 30-40days
Payment Terms: T/T

51mm Max Displacement Vibration Testing Equipment For Heavy Duty Vertical Load Support Up To 300kg Capacity

Description
Product Name: Vibration Test System Maximum Sine Force : 2200kg.f (22kN)
Max. Displacement: 51mm Power Supply: 3-phase, AC 380V, 50/60Hz
Amarture Diameter: 340 Mm Vertical Load Support : 300kg
Machine Weight : 1920 Kg Vibration Controller: 2 Channels Input
Highlight:

51mm Vibration Testing Equipment

,

Heavy Duty Vibration Testing Equipment

,

300kg Vibration Testing Equipment

Product Description:

The Vibration Test System is a cutting-edge Vibration Measurement System designed to meet the rigorous testing requirements of various industries. With its impressive specifications and advanced features, this Vibration Testing Equipment is a valuable tool for engineers and researchers seeking accurate and reliable vibration data.

One of the key highlights of the Vibration Test System is its maximum displacement capability of 51mm, allowing users to simulate a wide range of vibration scenarios with precision and control. This generous displacement range makes it suitable for testing a variety of components and structures across different industries.

Measuring at 1080L×920D×950H mm in overall dimensions, this Vibration Measurement System offers a compact and space-efficient solution for conducting vibration tests in laboratory or industrial settings. Despite its small footprint, the system delivers exceptional performance and versatility, making it an ideal choice for both research and development purposes.

The Vibration Test System boasts an impressive frequency range of 1 to 3000 Hz, enabling users to generate vibrations across a broad spectrum of frequencies for comprehensive testing and analysis. Whether you are evaluating the durability of a product or studying its dynamic response, this wide frequency range ensures that you can capture relevant data with precision and accuracy.

Equipped with a Vibration Controller featuring 2 channels input, this Vibration Testing Equipment offers enhanced control and flexibility during testing procedures. The multi-channel controller allows users to manipulate and monitor vibrations with ease, facilitating efficient data acquisition and analysis for a wide range of applications.

Powering the Vibration Test System is a reliable 3-phase AC 380V, 50/60Hz power supply, ensuring stable and consistent operation throughout the testing process. This robust power supply configuration enables the system to deliver reliable performance under varying load conditions, making it a dependable choice for demanding vibration testing requirements.

In conclusion, the Vibration Test System is a sophisticated Vibration Measurement System that combines precision, versatility, and reliability in a compact and user-friendly package. With its impressive specifications and advanced features, this Vibration Testing Equipment is well-suited for a wide range of applications across different industries. Whether you are conducting research, quality assurance testing, or product development, the Vibration Test System offers the performance and capabilities you need to achieve accurate and meaningful results.


Features:

  • Product Name: Vibration Test System
  • Vibration Controller: 2 Channels Input
  • Vertical Load Support: 300kg
  • Software: Sine, Random, Classic Shock
  • Overall Dimensions: 1080L×920D×950H Mm
  • Air Requirement: 0.6 Mpa

Technical Parameters:

Technical Parameter Value
Max. Displacement 51mm
Amarture Diameter 340mm
Max Acceleration 100g
Vertical Load Support 300kg
Product Name Vibration Test System
Overall Dimensions 1080L×920D×950H mm
Air Requirement 0.6 Mpa
Frequency Range 1 - 3000 Hz
Vibration Controller 2 Channels Input
Armature Weight 24kg

Applications:

LABTONE's Vibration Test System, model EV222, is a top-of-the-line Vibration Testing Equipment designed to meet the most demanding Vibration Measurement System needs. With its origins in China, this system boasts a CE certification, ensuring quality and reliability.

Perfect for a wide range of industries and applications, the Vibration Test System by LABTONE is ideal for various Product Application Occasions and Scenarios. From testing automotive components to aerospace parts, this system can simulate real-world vibrations accurately.

Whether you are in research and development or quality control, having a Vibration Verification System like the EV222 can help you ensure the durability and performance of your products. The system's impressive Max Acceleration of 100g and Frequency Range of 1 - 3000 Hz make it suitable for a variety of testing requirements.

One of the standout features of the EV222 is its robust construction, with a Machine Weight of 1920 Kg, ensuring stability during testing. Additionally, the system requires an Air Requirement of 0.6 Mpa, making it efficient and easy to operate.

When it comes to ordering, LABTONE offers a flexible Minimum Order Quantity of 1, and the system is carefully packaged in wooden cases for safe transportation. The Delivery Time is between 30-40 days, and Payment Terms are convenient with T/T options available.

With an Armature Weight of 24kg, the Vibration Test System is capable of handling a wide range of test specimens, providing accurate and reliable results every time. Whether you are testing small electronic components or large mechanical assemblies, this system is up to the task.
