Product Details:
|
Overall Dimensions: | 1080L×920D×950H Mm | Maximum Sine Force: | 2200kg.f (22kN) |
---|---|---|---|
Max. Displacement: | 51 Mm | Air Requirement: | 0.6 Mpa |
Armature Weight: | 24kg | Vertical Load Support: | 300kg |
Vibration Controller: | 2 Channels Input | Amarture Diameter: | 340 Mm |
Highlight: | Sine Random Vibration Testing System,ISTA Standard Vibration Testing System,0.6 Mpa Vibration Testing Lab Equipment |
The Vibration Test System is a highly advanced piece of vibration testing equipment designed to provide reliable and accurate vibration verification for a wide range of applications. It features a wide frequency range, from 1 to 3000 Hz, and a maximum displacement of 51 mm, allowing it to accurately simulate the vibration environment of many real-world applications. The system also offers robust vertical load support of up to 300kg, and an armature diameter of 340 mm, enabling it to generate a maximum sine force of up to 2200kg.f (22kN).
The Vibration Test System is the ideal choice for any user looking to verify the performance of their products in a range of vibration environments with the utmost accuracy. It is a reliable and versatile vibration verification system that is suitable for a variety of industrial and scientific applications.
Parameter | Value |
---|---|
Product Name | Vibration Test System |
Machine Weight | 1920 Kg |
Overall Dimensions | 1080L×920D×950H Mm |
Air Requirement | 0.6 Mpa |
Vertical Load Support | 300kg |
Max. Displacement | 51 Mm |
Max Acceleration | 92g |
Maximum Sine Force | 2200kg.f (22kN) |
Armature Diameter | 340 Mm |
Armature Weight | 24kg |

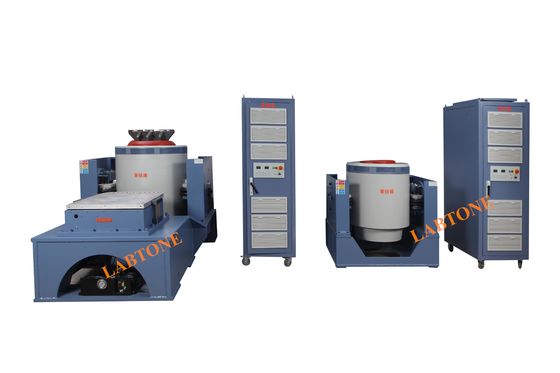

LABTONE EV222 Vibration Test System is a powerful vibration testing equipment designed to provide reliable and accurate vibration validation for a wide range of products. It features a 340 mm amarture diameter and a frequency range from 1 to 3000 Hz, as well as a max acceleration of up to 92g and a vertical load support of up to 300kg. With an overall dimension of 1080L×920D×950H mm, the LABTONE EV222 Vibration Test System is a highly efficient and reliable solution for validating the integrity of various products and components. It is a perfect choice for industrial and commercial applications, providing a reliable and accurate solution for vibration testing.
LABTONE EV222 Vibration Validation System is a high quality vibration testing equipment designed to meet your specific needs. It offers 2 channels of inputs and a maximum sine force of 2200kg.f (22kN). The amature diameter is 340 Mm and the power supply is 3-phase, AC 380V, 50/60Hz with a max. displacement of 51 Mm.
We provide comprehensive technical support and service for our Vibration Test System. Our team of experienced technicians and engineers are available to provide you with the help you need to keep your system running smoothly.
We offer a range of services including:
We strive to provide our customers with the highest quality technical support and service. If you have any questions or need assistance, don’t hesitate to contact us.
Packaging and Shipping for Vibration Test System:
The vibration test system should be packed in a sturdy cardboard box and secured with bubble wrap or foam to ensure a secure and safe delivery. The box should also be labeled with the product name and a detailed list of the components included in the box. Additionally, a packing slip should be included in the box to ensure that all components are accounted for upon arrival.
The vibration test system should be shipped with a reliable and reputable carrier to ensure the product arrives in a timely manner and is not damaged during transit. The carrier should be able to track the package to ensure that it arrives at its destination safely.
A1: The principle of the vibration test system uses Fleming's left-hand rule. When a current is applied to a conductor that crosses a magnetic field, a force is generated in the rectilinear direction, and the vibration table vibrates due to this force (exciting force).
A2: By carrying out vibration tests, we can predict how much vibration the object under test can withstand and prevent the damage it could cause. Along with other environmental tests, vibration tests are vital for proving the reliability of the product during development, manufacturing, and quality control.
A3: The Vibration Test System, model EV222, is made in China by LABTONE.
A4: Type of Vibration Test(SINE, RANDOM, and SHOCK Tests)
