Product Details:
|
| Max. Sine Force: | 2200kg.f | Vibration Controller: | 2 Channels Input |
|---|---|---|---|
| Software: | Since, Random, Shock | Air Requirement: | 0.6 Mpa |
| Power Supply: | 3-phase, AC 380V, 50/60Hz | Frequency Range: | 1 - 3000 Hz |
| Max Acceleration: | 92g | Vertical Load Support: | 300kg |
| High Light: | ASTM Lab Vibration Testing Equipment,60Hz Vibration Testing Lab Equipment,MIL-STD Vibration Testing Lab Equipment |
||
The maximum acceleration level of the electromagnetic vibration exciter is determined by the maximum current and the load. At low frequency, displacement of moving part will impose a limitation and the acceleration will not reach high level. The resonance frequency of the moving element is set higher than the upper limit of the frequency range.
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
| Shaker Specifications A20S34 | |
| Peak Sine (Pk) | 2200Kg.f peak (22KN) |
| Random (RMS) | 2200Kg.f r.ms (22KN) @ISO5344 |
| Shock (Pk) | 4400Kg.f peak (44KN) @6ms |
| Usable Frequency | 1～3000Hz |
| Maximum Displacement (p-p) | 51 mm (2 inch) |
| Max. velocity | 2m/s |
| Max. acceleration | 100g |
| Vertical Load Support | 300 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф342 mm |
| Armature Weight | 24 kg |
|
Fundamental Resonance Frequency (Bare table) |
2,600 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1050L x 900W x 1040H mm |
| Weight of Shaker | About 1960 Kg |

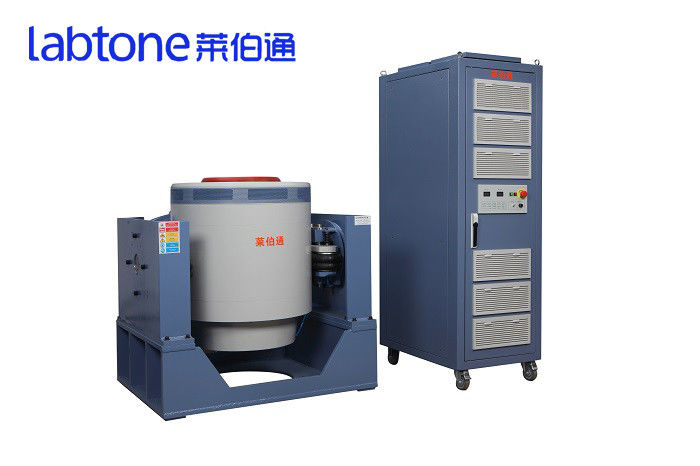

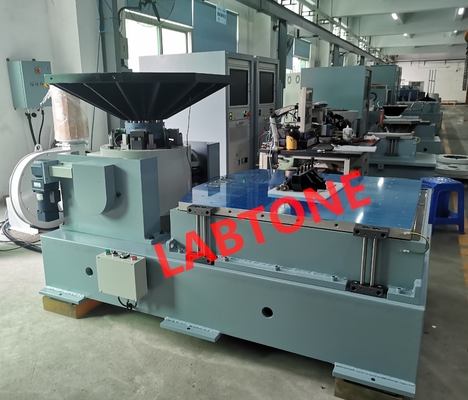

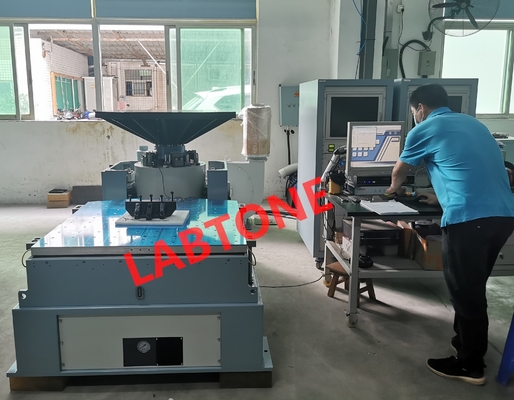

The LABTONE EV222 Vibration Test System is a versatile vibration testing equipment with a wide range of capabilities. It is ideal for vibration validation and measurement in a variety of industries. The system offers maximum sine force of 2200kg.f (22kN) with an amarture diameter of 340 Mm, and a frequency range of 1 - 3000 Hz. It is powered by a 3-phase, AC 380V, 50/60Hz power supply.
We provide technical support and service for Vibration Test System. Our team of experts is available to answer any questions and provide advice and guidance on the product.
We can provide on-site installation and maintenance services, and can assist in troubleshooting any issues that may arise with the test system.
We also offer training courses, both online and in-person, to ensure that users are able to use the system to its full potential.
If you have any questions or concerns about Vibration Test System, please do not hesitate to contact us.
