Product Details:
|
Drop Height: | 25-200 Cm | Max. Specimen Weight: | 4.4lbs (2kg) |
---|---|---|---|
DUT Size: | 400(W) X 400(D) Mm | Machine Size: | 1000W X 810D X 2382H Mm |
Machine Weight: | 158 Kg | Power Supply: | AC 220V/50HZ |
Air Supply: | 0.5 MPa | Drop Height Setting: | Scale And Setting Pointer |
Highlight: | Lab Orientation Drop Tester,Orientation Drop Tester for Mobile Phone,Lab Drop Tester 0.5 MPa |

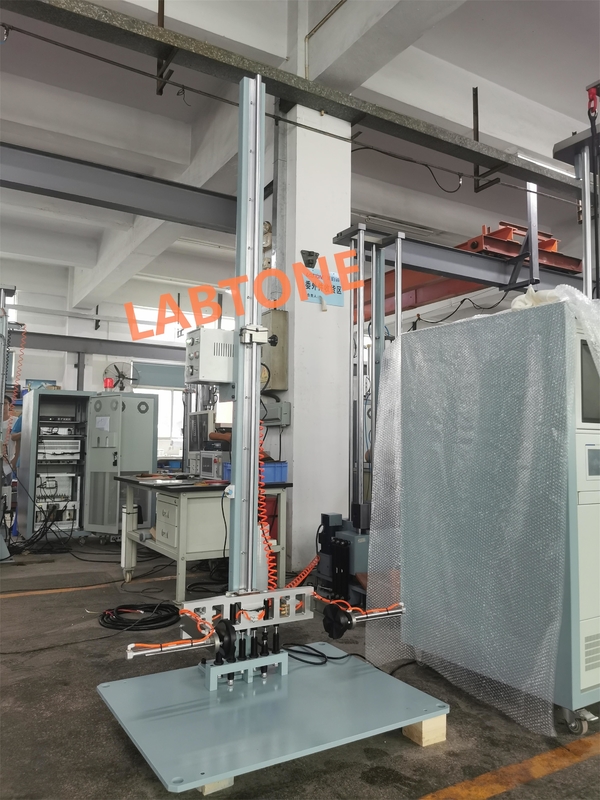

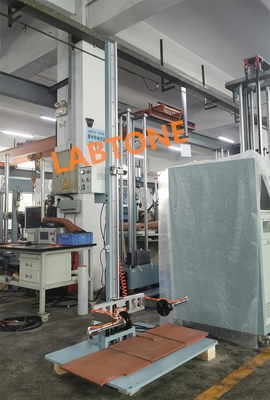

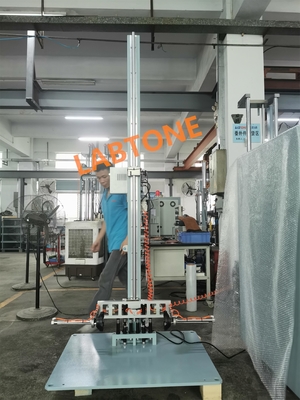

Lab Drop Tester for Mobile Phone and laptop Drop Test, Orientation Drop Test
Drop test for food, medicine, cosmetics.
Drop test for Laptop computers and electrical equipment.
Drop test for packaged goods and various samples.
Specifications
Model | DT-2A |
Drop height range (mm) | 250-2000 |
Specimen max.weight (kg) | 4.4lbs (2kg) |
Specimen max. size (mm) | 400 x 400 |
Machine Dimension (mm) | 600 x 500 x 2382 |
Machine weight (kg) | 158 |
Power supply | AC220V 50Hz compressed air 0.5Mpa |
Standards | IEC 60068-2-31, JIS C 60068-2-31 |
Functions and Features
This device can fix small and light weight products (light weight notebook computer, mobile phone, etc.) in any position and keep them falling from the height of 250-200cm to test the impact resistance of the test products.
(1) Specimen Support Mechanism
The support mechanism can be set to any height, and the pen-type pneumatic cylinder device for clamping can be set to make instantaneous cutting action at the height.
(2) Sample Fixing and Falling Action
Please use the "SET" (clamping) and "RESERT" (releasing) buttons on the controller to fix the specimen.
For the DROP action, press the "DROP" button.
(3) Drop Height Setting
Use height setting pointer to set any height. The position of pointer scale can be adjusted arbitrarily.
1. Q: What is your warranty ?
2. Q: How-to vedio provided ?
3. Q: Is the machine made in your own plant ?
4. Q: What about the quality ?
Company Profile:
Labtone Test Equipment Co., Ltd. is a +20 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
