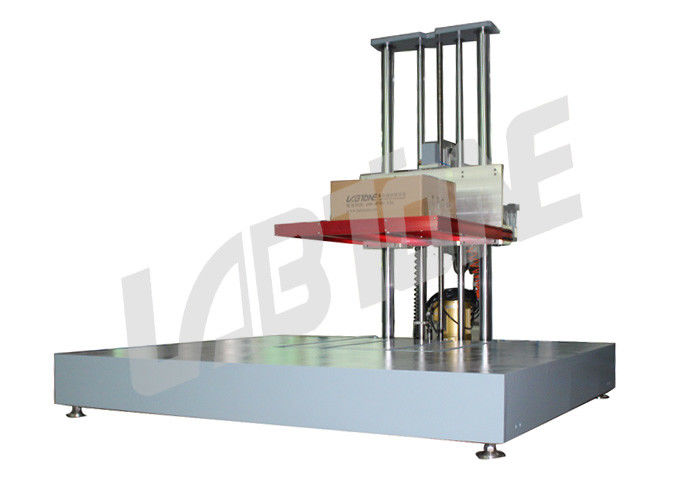

Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload

Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload
Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload
Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload

Large Image :  Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: DT020
Payment & Shipping Terms:
Minimum Order Quantity: 1set
Price: negotiable
Packaging Details: International plywood case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Heavy Free Fall 1200mm Packaging Drop Tester With 200kg Payload

Description
Model: DT020 Drop Height: 0~1200mm
Payload Capacity: 200kg Package Size: 1700*1500*1200mm
Drop Mode: Free Fall Drop Machine Size: 2100*1700*2800mm
High Light:

1200mm Packaging Drop Tester

,

E Shaped Fork Packaging Drop Tester

,

200kg Payload Packaging Drop Test Machine



200kg Payload Drop Tester For Heavy Package



Description

For large packaging with high mass, the vertical drop height during transport will be low and therefore they need drop test with relatively low drop height. Zero Height Drop Tester is mainly used for drop test of big package.
It uses an E-shaped fork that can move downward quickly as a bracket and specimen is placed in balance according to test requirement (surface, edge or Corner drop test). During testing, the bracket moves downwards quickly ahead of specimen with acceleration greater than 3G to ensure the separation of bracket and specimen and achieve free fall. The standard fall distance is ranged between 2.54cm-120cm.




Specifications

Model DT020 DT030 DT050
Drop Height(mm) 0~1200 0~1200 0~1200
Payload Capacity(kg) 200 300 500
Package Size(mm) 1700*1500*1200 1900*1500*1200 1900*1500*1200
Drop Mode Free Fall Drop
Machine Size(mm) 2100*1700*2800 2100*1700*2800 2100*1700*2800
Machine Weight(kg) 2350 2500 3200
Power/Air Supply 3-phase AC380V 50Hz (Compressed Air) 0.5~0.7Mpa
Applicable Standards ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27





FAQ


1. How to you attach the hardware you're testing to your shaker?

By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.



2. How do you control shakers?

If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.



3. What are those resonances? Are they bad?

Have you ever noticed the steering wheel moving with rather a large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship orland vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components and the PWB.
