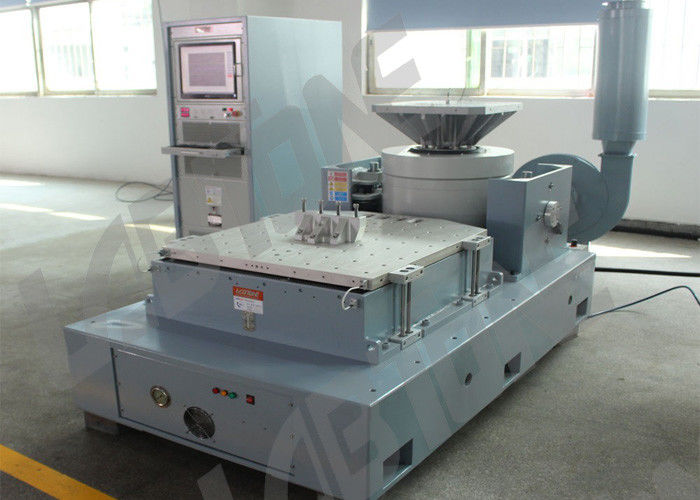

2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V

2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V
2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V

Large Image :  2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V

Product Details:

Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV222

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Sine Force: 2400kgf Max. Velocity: 2m/s
Maximum Displacement: 51mm Moving Element Mass: 24kg
Payload: 400kg Power Amplifier: 3-phase AC 380V 50Hz
Max. Acceleration: 100g Armature Diameter: 342mm
High Light:

Airbag Shock Isolation Vibration Test System

,

AC 380V Vibration Testing System

,

AC380V Vibration Test System

2400kgf Air-cooled Electromagnetic Vibration Test System





Description



Labtone EV series of electromagnetic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.



A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.



Specifications

Model EV222
Frequency(Hz) 1-3000
Max Exiting Force(kg.f) 2400
Max. Displacement (mmp-p) 51
Max. Acceleration(g) 100
Max. Velocity(m/s) 2
Payload(kg) 400
Armature Mass(kg) 24
Armature Diameter(mm) φ340
Vibration Generator Weight(kg) 1920
Vibration Generator Dimension L*W*H(MM) 1050*900*960
Cooling Method Forced Cooling
Power Amplifier Dimension L*W*H(MM) 900*680*1450
Utility
Requirements
3-phase AC380V ±10% 50Hz



Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation





Service

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when third party's verification is required)

After sales

  • Technical training: operation of equipment, daily maintenance, common fault diagonsis and troubleshooting.
  • Scheduled on-site service: detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer's needs.



Product Details

2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V 0



2400kgf Air Cooled Electromagnetic Vibration Test System 3 Phase AC 380V 1
