300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA

300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA
300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA

Large Image :  300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA

Product Details:

Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Max Sine Force: 300 Kg.f Max Displacement: 40mmp-p
Max Acceleration: 100g Max Load: 120kg
Max Velocity: 2.0m/s Frequency Range: 5-4500Hz
Armature Weight: 3kg Armature Diameter: 150mm
High Light:

Airbag Shock Isolation Vibration Testing Machine

,

ISTA Standard Vibration Testing Machine

,

300kg.f Electromagnetic Vibration Test System

300kg.f Electromagnetic Vibration Testing Machine In Line With MIL-STD, DIN, ISTA And Other Standards





Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Product Basic Introduction

  • Electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
  • Electromagnetic vibration testing system is designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.

Product Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
  • High efficency D class power switching, 3-sigma peak current, harmonic distrotion.
  • Quick self-diagnosis with safety interlock, high safety reliability.
  • Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
  • Horizontal and vertical expansion platforms for different applications.
  • Simple controller operation.



Specifications: EV203-EV207

Model EV203 EV204 EV206 EV207
Max Sine Force (kg.f) 300 400 600 700
Frequency Range (Hz) 5-4500 5-4000 5-4000 5-4000
Max Displacement (mmp-p) 40 40 51 51
Max Acceleration (g) 100 100 100 100
Max Velocity (m/s) 2 2 2 2
Max Load (kg) 120 120 300 300
Armature Weight (kg) 3 3.8 6 7
Armature Diameter (mm) 150 150 200 230
Cooling Method Forced Cooling

Power Amp.Dimensions

L*W*H (mm)

620*960*800 620*960*800 620*960*800 620*960*800
Power Amplifier Weight(kg) 320 320 400 400

Shaker Dimensions

L*W*H (mm)

780*570*660 780*570*660 890*750*780 890*750*780
Shaker Weight (kg) 450 450 910 910
Utility Requirements 3-phase AC380V±10% 50Hz





Product Images:

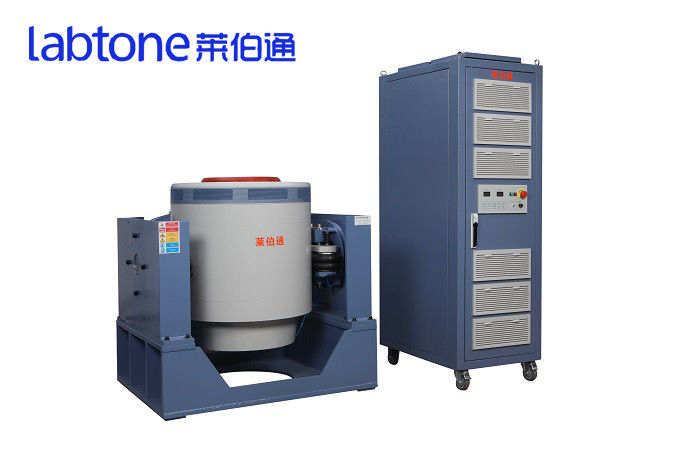

300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA 0



300kg.f Electromagnetic Vibration Testing Machine With MIL-STD DIN ISTA 1
