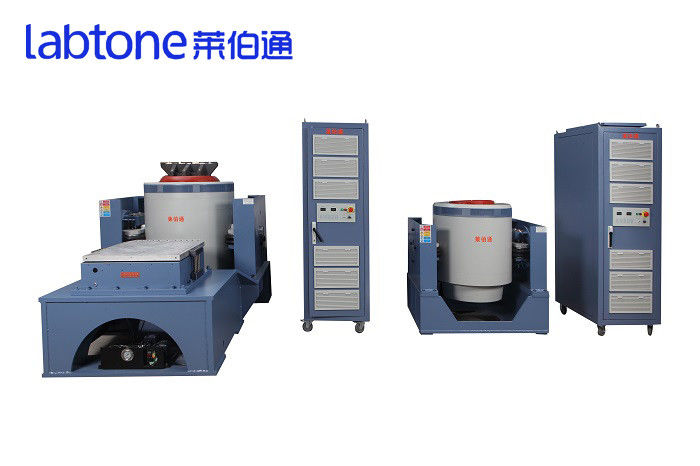

5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical

5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical
5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical

Large Image :  5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical

Product Details:

Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV206

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Max Sine Force: 600kg.f Max Displacement: 51mmp-p
Max Acceleration: 100g Max Load: 300kg
Max Velocity: 2.0m/s Frequency Range: 5-4000Hz
Shaker Weight: 910kg Shaker Dimensions: 890*750*780mm
High Light:

4000Hz Vibration Test System

,

Vibration Testing System 600kg.F

,

Rugged Suspension Vibration Test System

5-4000Hz, 600kg.f Vibration Test System





Product Basic Introduction



  • Electromagnetic vibration testing system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
  • Electromagnetic vibration testing system is designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standard platform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.





Basis For Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Product Features:



  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
  • High efficency D class power switching, 3-sigma peak current, harmonic distrotion.
  • Quick self-diagnosis with safety interlock, high safety reliability.
  • Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
  • Horizontal and vertical expansion platforms for different applications.
  • Simple controller operation.



Specifications

Model EV206
Max Sine Force (kg.f) 600
Frequency Range (Hz) 5-4000
Max Displacement (mmp-p) 51
Max Acceleration (g) 100
Max Velocity (m/s) 2
Max Load (kg) 300
Armature Weight (kg) 6
Armature Diameter (mm) 200
Cooling Method Forced Cooling

Power Amp.Dimensions

L*W*H (mm)

620*960*800
Power Amplifier Weight(kg) 400

Shaker Dimensions

L*W*H (mm)

890*750*780
Shaker Weight (kg) 910
Utility Requirements 3-phase AC380V±10% 50Hz
Aggregate Capacity (kw) 20





Packing:

5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical 0



5-4000Hz 600kg.F Vibration Test System Rugged suspension Horizontal vertical 1
