1000kg.f Vibration Testing Equipment for Automotive Parts

1000kg.f Vibration Testing Equipment for Automotive Parts
1000kg.f Vibration Testing Equipment for Automotive Parts 1000kg.f Vibration Testing Equipment for Automotive Parts 1000kg.f Vibration Testing Equipment for Automotive Parts

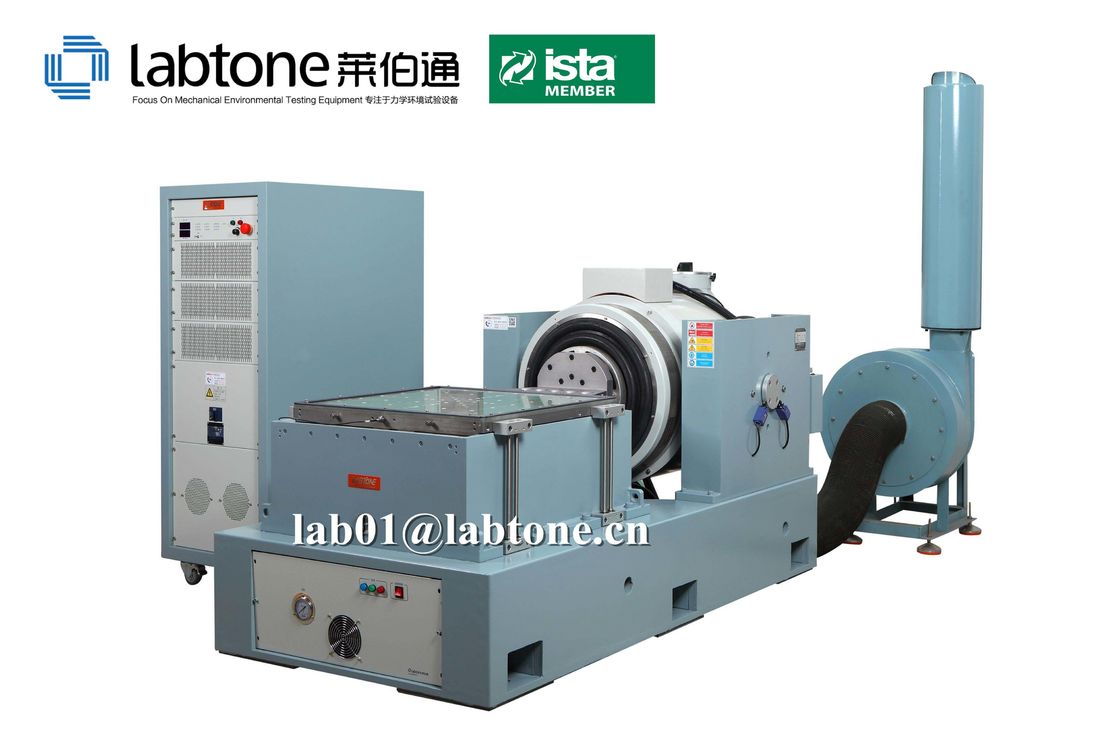

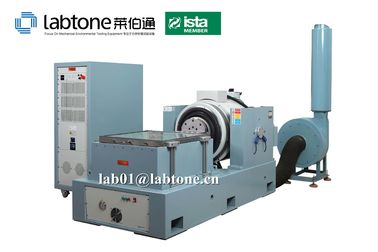

Large Image :  1000kg.f Vibration Testing Equipment for Automotive Parts

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV210

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Max. Sine Force: 1000 Kg.f (2200lbf) Machine Name: ED Shaker
Platform Materials: Aluminum Or Magnesium Max. Acceleration: 100G
Max. Velocity: 200 Cm/s Max. Displacement: 50.8 Mm
High Light:

1000kg.F Vibration Testing Equipment


200kg Load Vibration Testing Equipment


2200lbf vibration shaker machine


Shock And Vibration Testing Equipment, Vibration Analysis Equipment




In the vibration test, the vibration environment exposed by the product in actual use is reproduced. Products are tested in this environment to determine durability or to check for improvements.


There are two types of vibration test:


"Vibration Experiment": the vibration test is carried out on the sample or representative model of mass production.To improve product design.


"Vibration Stress Screening": All production products are tested to eliminate faulty units and approved good units. It may be mandatory in some industries.



Technical Specifications: EV203-EV320 (we also have othe models available)


Model EV203 EV206 EV210 EV320
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 1-2500 1-3000 1-3000 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000

Max. Displacement

(mm p-p)

10 51 51 76.2
Max. Acceleration(g) 100 100 100 80
Max. Velocity(cm/s) 120 200 200 200
Effective Payload(kg) 120 200 200 300
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1700
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1130
Power Amplifier Amp3k Amp6k Amp12k Amp30k
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 40



Meet Standards:



Applicable Industries:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.



  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  •  Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  •  High reliability, especially suitable for long-time operation



Our Services:
Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label

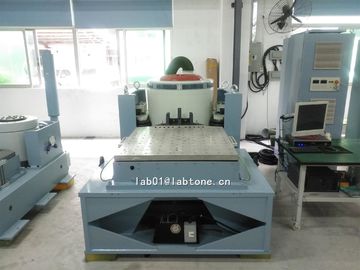

Detailed Pictures:

1000kg.f Vibration Testing Equipment for Automotive Parts 0
