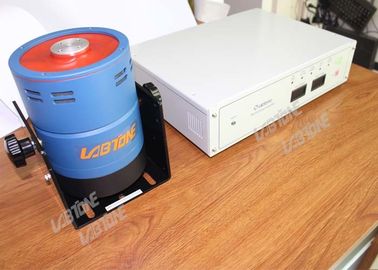

35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test

35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test
35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test 35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test

Large Image :  35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: NET-10
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test

Description
Product Name: Mini Type Vibration Tester Equipment Frequency Range: 5-10kHz
Max Sine Force: 100N Max Displacement: 10mmp-p
Max. Acceleration: 35G Weight: 4.5kg
Max Load: 1kg Applicable Standard: MIL-STD; IEC; ISO
High Light:

vibration testing services

,

vibration shaker system



35G Acceleration Mini Type Vibration Tester Equipment For Electronics Vibration Test





Specifications: NET-10



Model NET-10
Frequency 5-10kHz
Max Exiting Force 100N
Max. Displacement  10mmp-p
Max. Acceleration 35G(200m/s2)
Weight 4.5kg
Payload 1KG
Dimension

184*95*188mm

Armature Diameter φ30mm
Cooling Method

Natural Cooling

Power Supply AC220V



Features:


  • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
  • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
  • Apply to the basic test of vibration engineering of educational equipment.



Product Application:

Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.



Our Services



Pre-Sales Service

1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.

After-Sales Service

1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.


FAQ


How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.


How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.


What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
