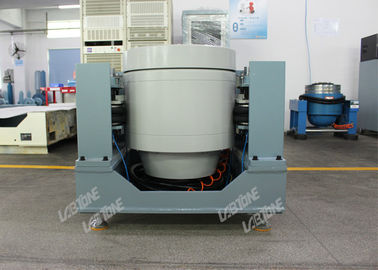

Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon

Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon
Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon
Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon

Large Image :  Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV310
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon

Description
Max. Sine Force: 1000 Kg.f Cooling Method: Air Cooled
Horizontal Slip Table: Available Max. Acceleration: 100G
Max. Velocity: 200cm/s Max. Displacement: 76.2 Mm
High Light:

vibration testing services

,

vibration shaker system





Vertical Vibration Test System Meet ISO 13355, ISTA 3A and ISTA 6-Amazon





Introduction:



Vibration Test Systems are used to evaluate resonant frequencies of product and package designs and simulate the random vibration that occurs in the distribution or in-use environment. Labtone’s Vibration Test Equipment are simple to operate safely and can perform a wide range of vibration tests in accordance with government, industry and corporate specifications.



Vibration Testing is performed to determine if a product can withstand the rigors of its intended use. Labtone is a professional manufacturer for high-performance vibration shaker including electrodynamic shakers and repetitive shock vibration tables.





Technical Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220 EV310
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50 VG1000/76
Frequency(Hz) 1-3000 1-3000 1-3000 1-2500 1-3000
Max Exiting Force(kg.f) 300 600 1000 2000 1000

Max. Displacement

(mm p-p)

40 51 51 51 76
Max. Acceleration(g) 100 100 100 100 100
Max. Velocity(cm/s) 200 200 200 200 200
Payload(kg) 120 200 300 400 300
Armature Mass(kg) 3 6 10 20 10
Armature Diameter(mm) φ150 φ200 φ240 φ320 φ240
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600 1100
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100 845*685*840
Power Amplifier Amp3k Amp6k Amp12k Amp22k Amp12k
Power Amplifier Weight(kg) 250 320 350 500 350
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35 25





Meet Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Applicable Industries:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.




Features:

  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  •  Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  •  High reliability, especially suitable for long-time operation





Our Services:

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label



Detailed Pictures:

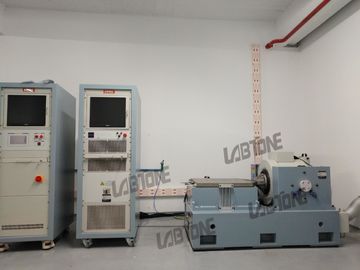

Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon 0

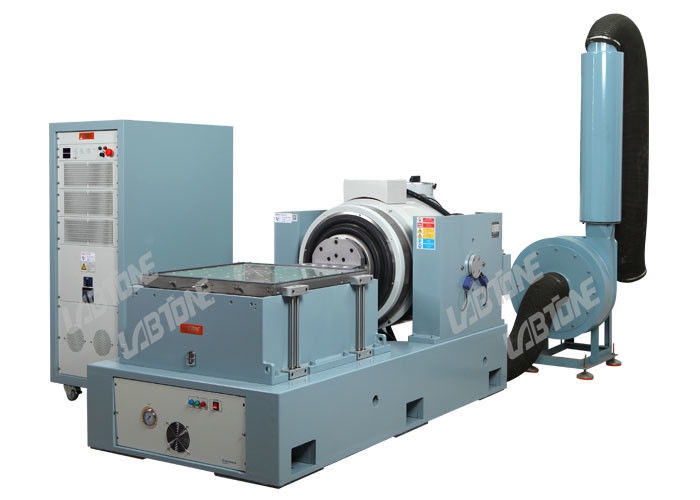

Vertical Vibration Test Machine Meet ISO 13355, ISTA 3A And ISTA 6- Amazon 1
