Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards

China Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards supplier
Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards supplier Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards supplier Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards supplier

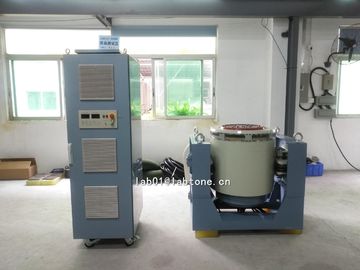

Large Image :  Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV320

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Shaker Size: 845 X 685 X 840 Mm Shaker Diameter: Dia 320 Mm
Displacement: 76.2 Mm Max. Force: 2000kg.f
Software: Sine, Random, Shock Power Supply: AC 380V 50Hz



Vibration Test System Vibration Shaker Meet ISTA 3A 6AStandards Grms 0.53g 58.72mm





Introduction:

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products. Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.





Technical Specifications:

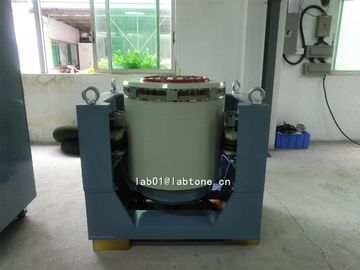

VG3200-76 Electro-dynamic Vibration Shaker
Max. Sine force 2000Kg.f peak
Max. Random force 2000Kg.f rms
Max. Shock force 4000Kg.f peak
Frequency range 2 - 3000 Hz
Max. displacement 76.2 mm p-p
Max. speed 2m / s
Max. acceleration 100G (980 m/s2)
First-order resonance frequency 3200 Hz±5%
Effective load 300 kg
Vibration isolation frequency 2.5 Hz
Diameter of armature Ф320 mm
Mass of armature 25kg
Table screw 16×M10
Flux leakage <10gauss
Allowable eccentric moment 300N.m
Shaker dimensions 1200 × 870 ×1130 mm
Shaker weight About 1700Kg



Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Main Applications:
  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screening



Horizontal oil film slip table


The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.

Grms 0.53g 58.72mm Vibration Test System Vibration Shaker Meet ISTA 3A 6A Standards


Customer Services


Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
