Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test

Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test
Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test

Large Image :  Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV320
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test

Description
Max. Load: 2000 Kg Frequency Range: 1-3000 Hz
Axial Direction: X, Y, Z Max Velocity: 200 Cm/s
Applicable Industry: Automotive, Electronics, Battery, Etc Power Supply: AC 380V 50Hz
High Light:

vibration testing services

,

vibration shaker system



Dynamic Shaker Vibration Testing Equipment For Automobile Parts Vibration Testing





Prodcut Introduction:

The working principle of the vibration exciter is similar to a loudspeaker whereby electrical conductor is moved by the action of electromagnetic force in the magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control the vibration generator.


Technical Specifications: EV320


Parameters of VG5000/50 electromagnetic vibration generator
Max. sine force 2000Kg.f peak (20kN)
Max. random force 2000Kg.f r.ms (20kN)
Max. shock force 4000Kg.f peak (40kN)
Frequency range 1 - 3000 Hz
Max. displacement 76.2 mm p-p
Max. velocity 2m/s
Max. acceleration 80G (980 m/s2)
Max. load (sine) F=M.A
5G (49 m/s2) 10G (98 m/s2) 20G (196 m/s2) 30G (294 m/s2)
375kg 175kg 75kg 41.6kg
First-order resonance frequency 2700 Hz±5%
Effective load 300 kg
Vibration isolation frequency 2.5 Hz
Diameter of armature Ф320 mm
Mass of armature 25kg
Flux leakage <10gauss
Allowable eccentric moment >500N.m
Shaker dimension 1200 × 870 × 1130 mm
Shaker weight About 1700Kg



Meet International Standards:

MIL-STD-810G, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.



Main Applications:
  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screening

Character:

  • Armatures diameters from 320 mm (12.6 in) to 450 mm (17.7 in) with metric or American pcd.
  • Internal load support is standard
  • Active armature suspension system
  • Standard body isolation and guidance system designed to eliminate the use of a seismic base
  • Useful vibration control frequency range from 2 to 3000 Hz
  • Some systems available with 76 mm (3 in) displacement

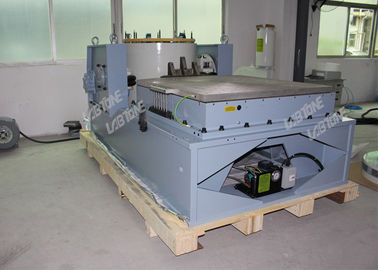

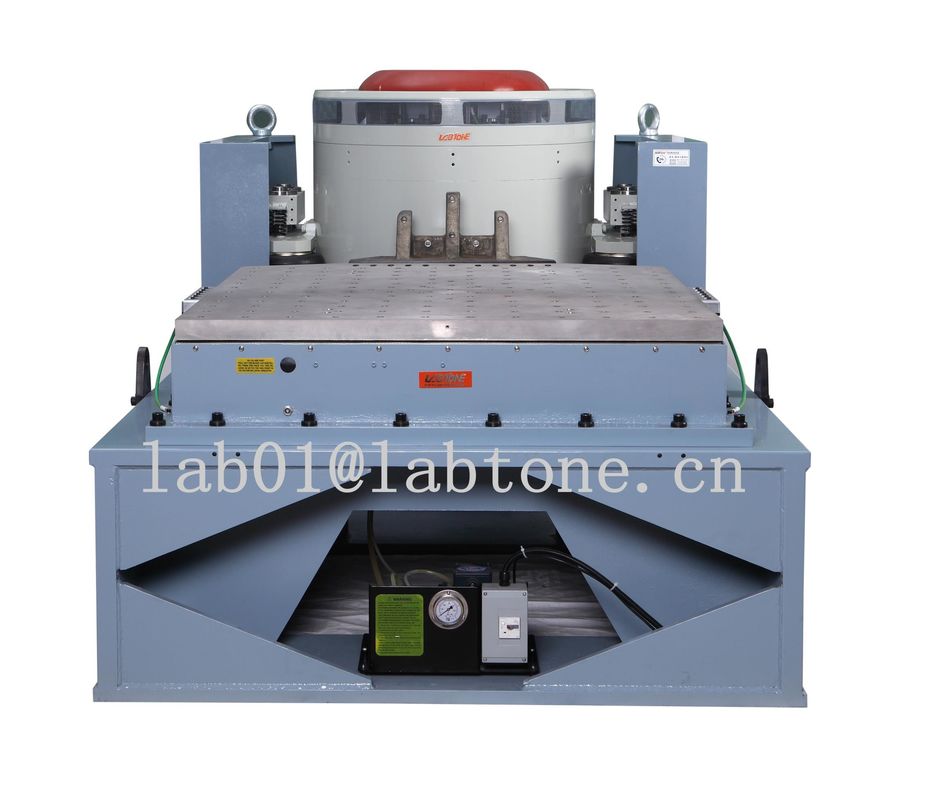

Horizontal oil film slip table

The horizontal slip table is designed to have high tilting moment and lateral restriction. This design concept is combined with standard horizontal slip table to enable high dynamic moment limit and keep guide oil film damping feature. The horizontal slip table is composed of a slipper, a connector, a natural granite slab, horizontal slip table base and an independent oil source.

Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test 0


Customer Services


Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.


In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).


After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.


Electrodynamic Shaker Vibration Test Equipment For Battery Vibration Test 1
