Name: | Small Shaker 500N Sine Force VIbration Test System Includes Power Amplifier Accelerometer | Random Force: | 550 N (55kg.f) |
---|---|---|---|
Max. Acceleration: | 30 G | Displacement: | 20 Mm |
Max. Velocity: | 1.6 M/s | Cooling Method: | Air Cooling |
Highlight: | vibration testing services,vibration shaker system |

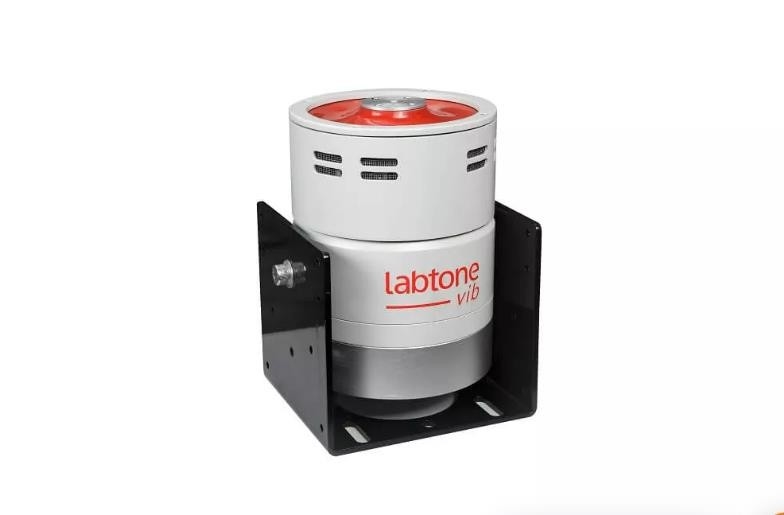

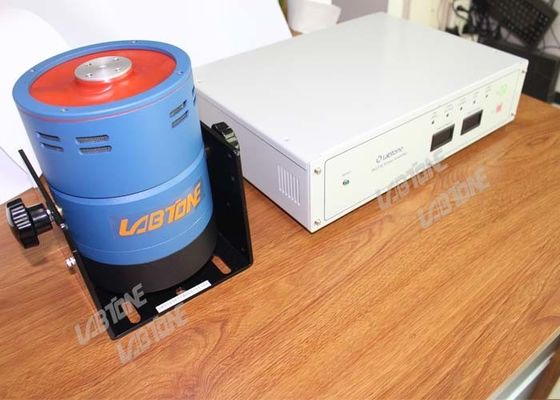

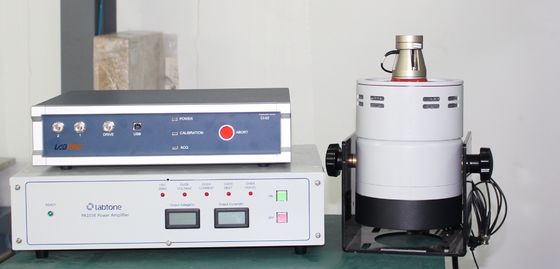

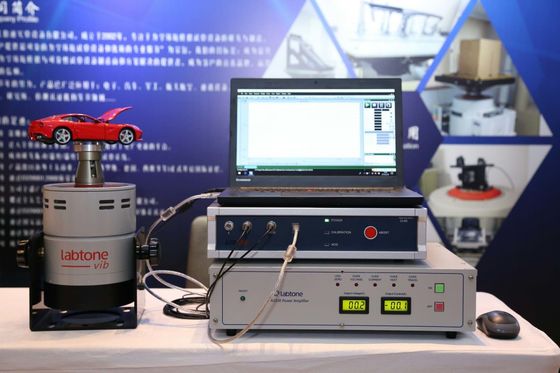

Minitype Vibration Test System
With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.
Item | Configuration | Qty. |
1. | Vibration shaker | |
A005S12 Shaker | 1 set | |
Head Expander VT40CM | 1 set | |
2. | Digital switch power amplifier | |
PA501EF Power Amplifier | 1 set | |
3. | Digital vibration controller | |
Master unit of digital vibration controller | 1 set | |
System acceleration sensor | 1 pcs | |
Control software installation disc | 1 set | |
4. | Attached accessories | |
Extension cable and duct hose | 1 set | |
Operation instructions, inspection report, certificate, maintenance manual, etc. | 1 set | |
Attached special tools | 1 set |
1) Apply to the calibration of high precision vibration meter, mechanical impedance test, and vibration analysis of the vibration source.
2) Apply to the vibration test of various small and lightweight parts such as sensors, electronic, electric machines and etc.
3) Apply to educational equipment for the basic test of vibration engineering.
Electrodynamic shaker | |
Max. sine exciting force | 55Kg.f peak (550N) |
Frequency range | 5~5000Hz (Larger frequencies are available) |
Max. displacement | 20 mm p-p |
Max. velocity | 1.6 m/s |
Max. acceleration | 30 G (300 m/s2) |
Vertical load support | 20 kg |
Armature diameter | Ф120 mm |
Armature weight | 1.7 kg |
Over all Dimension | 445mm L x 333mm D x 203mm H |
Shaker weight | 97 Kg |
Cooling type | Air Cooling by inner axial fan |
PA501EF Power Amplifier | |
Output power | 900 VA |
Amplifier cabinet dimension | 430mm×200mm×500mm |
Servo protection system | |
Functions: | FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP |
Vibration controller | |
Hardware configuration: | 2-channel inputs, 1-channel outputs |
Control computer | 1 set |
Function |
Sine Control, Random Control Language:English,Chinese |
Operating system | Microsoft Windows 7/8/10 |
Acceleration sensor LAB |
Frequency range:1-12KHz Sensitivity: 30 ±10 pC/g Temperature range: -40℃ to 160℃ |
Head Expander VT40CM | |
Table size | 400x400mm |
Material | Magnesium alloy |
Frequency | Up to 2000Hz |
Electrical requirements: | |
Power supply | AC 220V±10%, 50/60Hz, Single Phase, 900VA |
Environment Requirements |
Temperature: 0~40ºC Relative Humidity: 0~80%, non-condensing |
