CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg

China CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg supplier
CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg supplier CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg supplier CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg supplier

Large Image :  CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: KDT2000

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton Or Polywood Case
Delivery Time: 30-35 Work Days
Supply Ability: 50 Sets / Month
Contact Now
Detailed Product Description
Weight Capacity: 200kg~1500kg Power Required: AC220V / 50Hz
Compressed Air: 0.5 Mpa-0.7 Mpa Lifting Device: Customer Supplied
Machine Weight: 16 Kg Machine Size: 345 X 235 X 145 Mm
Name: CE Certified Drop Test Release Hooks For Heavy Package Testing Up To 1500kg

CE Certified Drop Test Release Hooks For Heavy Package Testing up to 1500kg





Introduction



The KDT2000 Drop Tester is designed to simulate the drops and mechanical hazards that occur in distribution. It is especially suited to very large, heavy payloads that cannot be tested on conventional drop test machines.

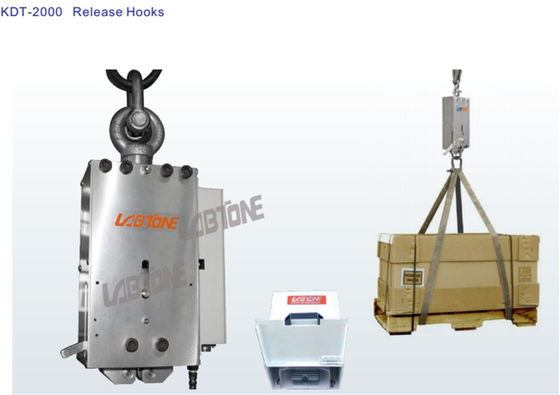

The KDT2000 consists of a quick-release mechanism, lifting ring, and foot-switch for initiating the drop. Straps wrapped around the test item form a sling that attached to the O type ring, which is placed in the latch jaws of the quick-release mechanism. The quick-release mechanism and test package are then lifted to a pre-determined height by a fork-lift, winch, or another lifting device (not included). Press the Remote Foot-switch causing the latch jaws to open and the package to fall.





Technical Specification



Weight Capacity: 200kg~1500kg

Power Required: AC220V / 50Hz ( or according to customer’s need)

Compressed Air: 0.5Mpa~0.7Mpa

Lifting Device: Customer Supplied

Weight of KDT2000 : 11kg ( excluding foot-switch, which is 5kg)

Size of KDT2000: 345 x 235 x 145 mm

Size of foot-switch: 270 x 200 x220 mm ( Lx D x H)



Features

  • High strength aluminum construction for durability and ruggedness
  • Heavy-duty industrial solenoid designed for quiet operation and long life
  • Hardened steel cam rollers ensure a vertical drop
  • Positive lock design will not release the load in the event of power loss
  • Self-lubricating low friction bearings in latch jaws and linkage
  • Forged steel eyebolt provides convenient lifting point
  • The footswitch is covered by a metal guard to prevent accidental activation
  • Footswitch detaches for convenient set-up and storage





Labtone Service



Pre-sales service:
Technical Advisory: Testing method, laboratory planning, and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme

Selling service:
Customer Communication, progress communication
Before installation, we will provide guidance of preparation, equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification

After-sale service:
Quality assurance period for one year, lifelong maintenance.
Technical guidance
Feedback within 2 hours after getting the call.
