Payment & Shipping Terms:
|Drop Height:||300-1500mm||Specimen Weight:||85kg|
|Specimen Dimension:||800*800*800mm||Drop Mode:||Free Fall|
|Machine Dimension:||1700*1200*2150mm||Machine Weight:||450kg|
|Warranty:||12 Months||Air Pressure:||0.5-0.7Mpa|
|Standard:||ISTA||Name:||Precision Free Fall Drop Tester For ISTA 6A FedEx Package Test|

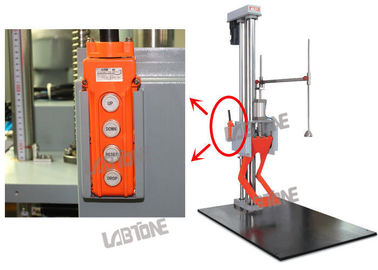

Precision Free Fall Drop Tester For ISTA 6A FedEx Package Test
Packaging drop tester is used to measure the dropping impact incidence when the package in using, transportation and decorating.
Labtone "1G+" project strictly ensures accuracy. Besides precision plane drop testing, it also can undertake edge and angle test to ensure the complete performance evaluation for the package.
High Accuracy Drop Tester for Packaged Freight specifications
|Drop height range (mm)||300---1500||300----2000|
|Specimen max.weight (kg)||85||85|
|Specimen max. size (mm)||800*800*800||800*800*800|
|Machine Dimension (mm)||1500*1000*2150||1700*1200*2750|
|Machine weight (kg)||480||550|
|Power supply||AC220V 50Hz compressed air 0.5~0.7Mpa|
|Standards||ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27
Functions and Features
1 Satisfy and even beyond GB, IEC, ASTM, ISTA, and other industrial standards.
2 Can perform surfaces, corner, and edge drops.
3 Precise guiding system and pneumatical driving;
4 Unique swing arm structural design, escape acceleration of swing arm greater than 3G.;
5 With double column guide, the hydraulic buffer will absorb the dynamic force of the swingarm, such that the movement is stable, reliable with low noise
6.Self-locking screw-in lifting mechanism to prevent accidental downward glide.
7.Automatic pneumatic interlocks to prevent abnormal detachment of swing arm.
8.Extensible support bracket and steel base plate.
1. Q: What is your warranty?
2. Q: How-to video provided?
3. Q: Is the machine-made in your own plant?
4. Q: What about the quality?
