Product Details:
|
| Rated Sine Force: | 40 KN (4000kg.f) | Random Force: | 40 KN (4000kg.f) |
|---|---|---|---|
| Frequency: | 2-2500 Hz | Max. Acceleration: | 100G |
| Max. Velocity: | 200cm/s | Max. Displacement: | 50 Mm |
| Payload: | 800 Kg | Vibration Generator Dimension: | 1400*980*1100 Mm |
| High Light: | vibration testing services,vibration shaker system |
||

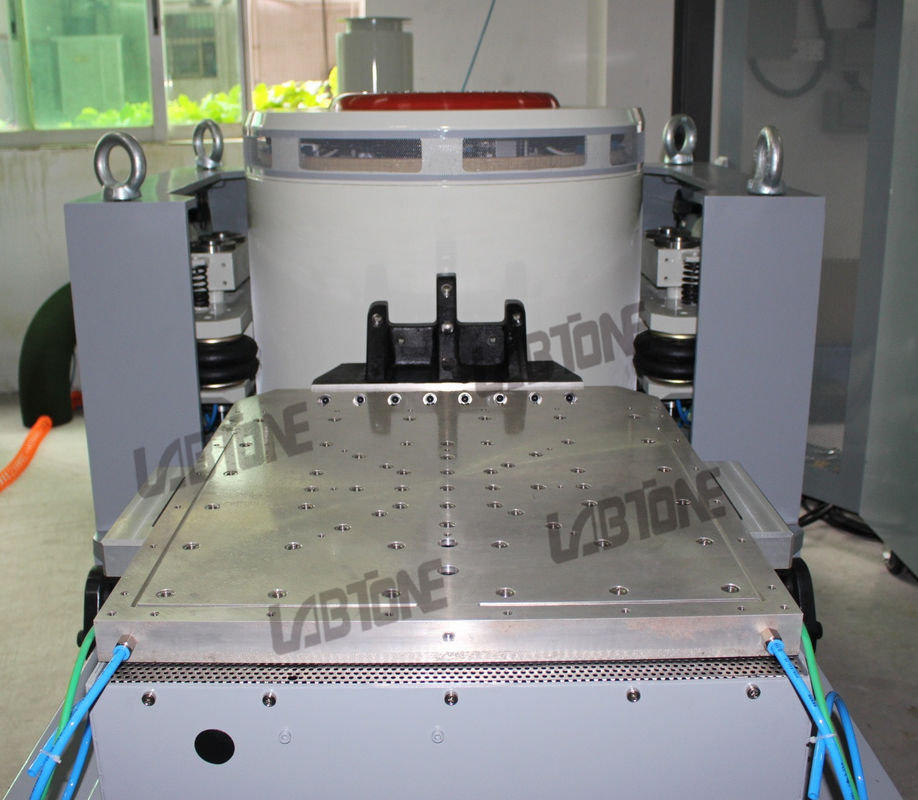

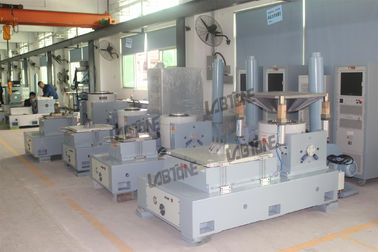

4 Ton Vibration Test System , Electrodynamic Shaker Tester Meet IEC61300-2-1
Introduction:
The mode of function of a shaker corresponds to that of a loudspeaker. The vibration movement is generated by the interaction of electric current passing through the plunger coil and a magnetic field. The force used to accelerate the moving element comprised of a ribbed body and the wrapped plunger coil is proportional to the coil current, the magnetic flux density, and the length of conductor in the magnetic field. The vibration level of shaker can therefore be controlled by electric current intensity.
Technical Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
|
Max. Displacement (mm p-p) |
38 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 120 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Meet Standards:
MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries:
Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.
Features:

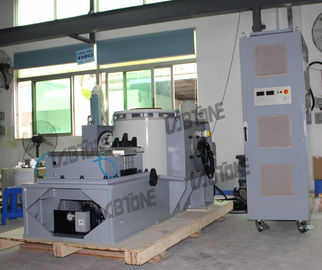

Technical Parameters of Horizontal Expander:
Vertical electromagnetic shaker is unable to test the heavy and large specimen, and the high position of center of gravity will cause sideslip, tumbling and overturning moment and this will always overstress the suspension system of shaker and damage the system. Therefore, need for slip table system for vibration testing is increasing to allow the testing to be done horizontally so that the system can withstand larger
and heavier load.
| Pre-sales service |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM, Design service,Buyer label |
