Product Details:
|
| Product Name: | Electrodynamic Shaker System | Max Sine Force: | 3KN |
|---|---|---|---|
| Max Displacement: | 40mmp-p | Max. Acceleration: | 100G |
| Max. Velocity: | 200cm/s | Max Load: | 120kg |
| Frequency Range: | 2-2500Hz | ||
| Highlight: | vibration testing services,vibration shaker system |
||

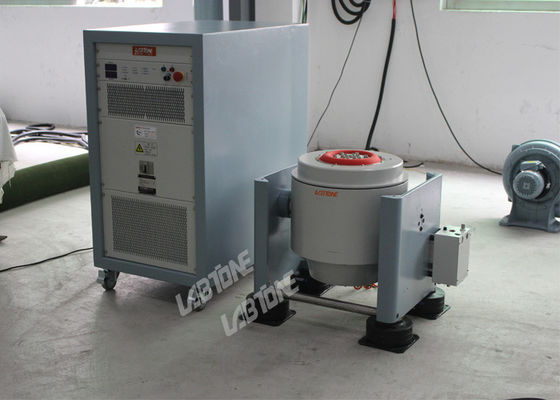

Electrodynamic Shaker System For Vibration Testing Provide Slip Table For Horizontal Vibration
Features:
Specifications: EV203-EV232
| Model | EV203 | EV206 | EV210 | EV220 | EV232 |
| Vibration Generator | VG300/40 | VG600/50 | VG1000/50 | VG2000/50 | VG3200/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 | 3200 |
| Max. Displacement (mmp-p) | 40 | 50.8 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 | 500 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 | 30 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 | φ400 |
| Cooling Method | Forced Air Cooling | ||||
| Shaker Weight(kg) | 480 | 920 | 1200 | 1600 | 2000 |
| Shaker Dimension L*W*H(MM) | 800*565*670 | 890*750*850 | 890*750*850 | 1200*870*1100 | 1400*900*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k | Amp35k |
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 | 550 |
| Power Amplifier Dimension L*W*H(MM) | 880*590*1125 | 880*590*1275 | 880*590*1275 | 880*590*1275 | 800*550*1920 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | ||||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 | 45 |
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Our Services
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
