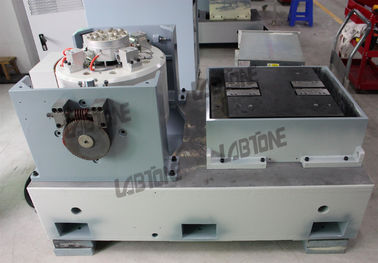

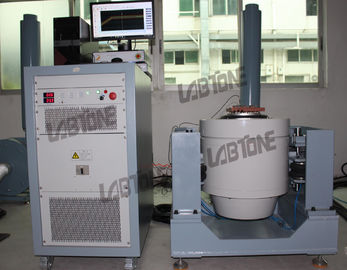

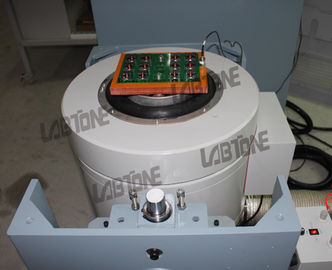

10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test

10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test
10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test 10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test 10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test

Large Image :  10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV203
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test

Description
Max. Sine Force: 300 Kg.f Max. Random Force: 300 Kg.f
Max. Shock Force: 600 Kg.f Max. Acceleration: 100G
Max. Velocity: 120cm/s Max. Displacement: 38 Mm
High Light:

vibration testing services

,

vibration shaker system



10-1000Hz Sine Random Vibration Testing System 20G For Auto Motor Vibration Test







Features:

  1. Strength of the suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  2. Perfect performance on amplitude variation.
  3. High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.
  4.  U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  5. Able to complete sine ,random , impact environmental tests
  6. High reliability, especially suitable for long-time operation
  7. Quick self-diagnosis with safety interlock, high safety reliability;
  8. High efficient on D Class power conversion, 3 - Sigma peak current, provide the optimization of power consumption and minimum harmonic distortion.



Applicable Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries:

Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.





Specifications: EV103-EV220



Model EV103 EV203 EV106 EV206 EV210 EV220
Vibration Generator VG300/25 VG300/40 VG600/25 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-4000 2-2500 2-3000 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 300 600 600 1000 2000
Max. Displacement (mmp-p) 25 38 25 50 50 50
Max. Acceleration(g) 100 100 100 100 100 100
Max. Velocity(cm/s) 200 120 180 200 200 200
Payload(kg) 110 120 200 200 300 400
Armature Mass(kg) 3 3 6 6 10 20
Armature Diameter(mm) φ150 φ150 φ200 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 460 720 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*560*670 750*555*670 800*600*710 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp3k Amp6k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 250 320 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 8 9 18 20 25 35





Our Services:



Service commitment and support
Pre-sales service Technical Advisory;
Equipment Selection;
Product testing scheme.
In-sales service Close and effective communication with clients;
Timely and effectively solve the related issues.
After-sales service Warranty period of one year ;
Equipment installation and debugging;
Technical training;
Feedback within 2 hours after get the call.
Others Maintenance, modification and upgrade for the machine;
Design and producing for special fixtures and table





Production:
