Product Details:
|
| Sine Force Peak: | 40 KN (4000 Kg.f) | Max Acceleration: | 100g |
|---|---|---|---|
| Max Velocity: | 2.0 Cm/s | Frequency Range: | 2-2500 Hz |
| Max Displacement: | 100 Mm | Power Supply: | 3-phase AC 380V / 50Hz |
| Max. Payload: | 500kg | VIbration Controller: | Random, Swept Sine, Classical Shock |

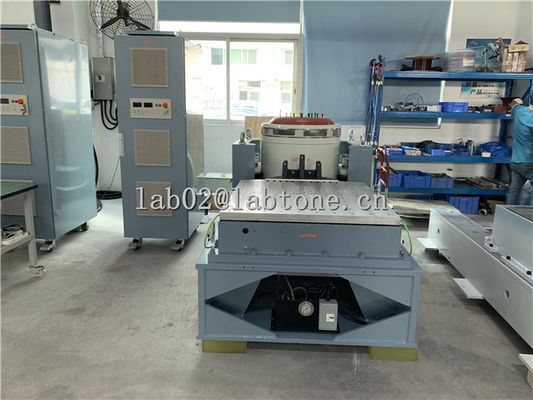

| Name: | Air Cooled 40KN Vibration Test System With Vibrating Table 1000x1000mm | ||
| High Light: | vibration testing services,vibration shaker system,40KN Vibration Test System |
||
| Item | Configuration | Qty. |
| 1 | Vibration shaker COMBO | |
| A30F44 Shaker (included Pneumatic Centering Controller) | 1 set | |
| B153 blower (included silencer and 4.5M Duct ) | 1 set | |
| Head Expander VT150CM | 1 set | |
| Horizontal Slip Table HG150M (included Shaker Rotation system) | 1 set | |
| 2 | Power Amplifier | |
| LA40K power amplifier(included Field power supply) | 1 set | |
| 3 | Vibration Controller VCS-4 | |
|
Model : VCS-04, Hardware : 4 PE/ICP input channels Software application :Sine,Random,Shock |
1 set | |
| Accelerometer LTE-C04A07 (with low noise cable) | 2 pcs | |
| PC system | 0 set | |
| 4 |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| 5 | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
| Shaker Specifications A30F44 | |
| Peak Sine (Pk) | 4000Kg.f peak (40KN) |
| Random (RMS) | 4000Kg.f r.ms (40KN) @ISO5344 |
| Shock (Pk) | 10000Kg.f peak (100KN) @6ms |
| Usable Frequency | 1～3000Hz |
| Maximum Displacement (p-p) | 100mm (4inch) |
| Max. velocity | 2m/s |
| Max. acceleration | 100g (980 m/s2) |
| Vertical Load Support | 500 kg |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф442 mm |
| Armature Weight | 35kg |
|
Fundamental Resonance Frequency (Bare table) |
2,500 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Allowable partial force | 500.N.M |
| Shaker dimensions | 1290mmL×1010mmD×1145mmH |
| Weight of Shaker | About 3000Kg |
| Power Amplifier Specifications LA40K | |
| Rated Output Capacity | 40KVA(120Vrms/380Arms) |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 600mmL×900mmD×1980mmH |
| Weight of Amplifier | About 530Kg |
Customer Service:
Warranty: 12 months from delivery, lifelong time maintenance.
After-sale service: feedback within 4-8 hours after getting the call or email.
Service: OEM, ODM
Certificate: China official third-party calibration report / CE Certification
Welcome to contact us with your vibration test inquiry.
Application:
