2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards

2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards
2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards
2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards 2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards

Large Image :  2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards

Product Details:
Place of Origin: China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: L/C, T/T
Supply Ability: 15 Sets / Month

2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards

Description
Max Sine Force: 6000kg.f Max Displacement: 76mmp-p
Max Acceleration: 100g Max Load: 1000kg
Max Velocity: 2m/s Frequency Range: 1~2700Hz
Armature Diameter: 440mm Armature Weight: 55kg
High Light:

Rugged Suspension Electrodynamic Vibration Shaker

,

6000kgf Electrodynamic Vibration Shaker

,

2700Hz Vibration Test System

2700Hz 6000kgf Electric Shaker Complies With MIL-STD, ISTA And Other Standards





Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.



Product Basic Introduction

  • Labtone EV series of electrodynamic shaker vibration test system simulate the vibration environment under the laboratory condition, and test the impact strength as well as reliability of various vibration test applications. In the laboratory, with the aid of vibration testing system, simulations of reproduction of sinusoidal, random, resonant search and dwell, classical shock and road models, etc. can be achieved. It is essential for product quality assurance, new product research and development.
  • Labtone EV series of electrodynamic vibration testing system is specially designed to meet the need for long time operation. Vertical and horizontal vibrations can be achieved by the installation of vibration resistant base. The standardplatform is equipped with high efficiency airbag shock isolation device, so that the vibration transmitted to the building can be minimized. There is no need for additional foundation in most of the cases.
  • A complete set of vibration testing system is composed of shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection.

Product Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
  • Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation. low power consumption and minimum.
  • High efficency D class power switching, 3-sigma peak current, harmonic distrotion.
  • Quick self-diagnosis with safety interlock, high safety reliability.
  • Airbag shock isolation device for vibration platform without the need of additional. foundation, perfect reprodution of vibrational wave and reduction in vibration transmittance.
  • Horizontal and vertical expansion platforms for different applications.
  • Simple controller operation.



Specifications: EV310-EV370

Model EV310 EV322 EV350 EV360 EV370
Max Sine Force (kg.f) 1100 2400 5000 6000 7000
Frequency Range (Hz) 1~3000 1~3000 1~2700 1-2700 1~2500
Max Displacement (mmp-p) 76 76 76 76 76
Max Acceleration (g) 85 92 91 100 100
Max Velocity (m/s) 2 2 2 2 1.9
Max Load (kg) 300 500 1000 1000 1000
Armature Weight (kg) 13 24 55 55 65
Armature Diameter (mm) 240 340 440 440 450

Shaker Dimensions

L*W*H (mm)

915*740*830 1080*920*830 1580*1180*1320 1580*1180*1320 1580*1180*1350
Shaker Weight (kg) 900 1920 5000 5000 5300





Services:

Presales

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

After-Sales

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to the customer's needs.

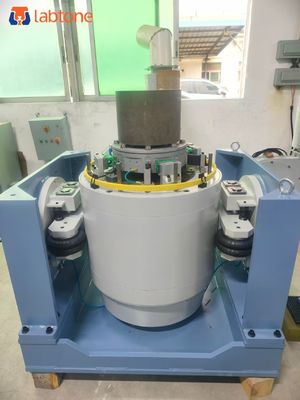

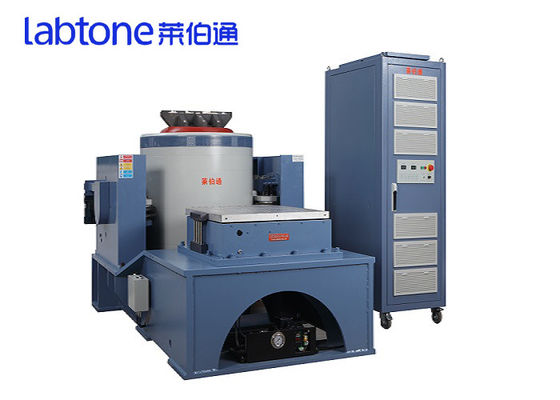

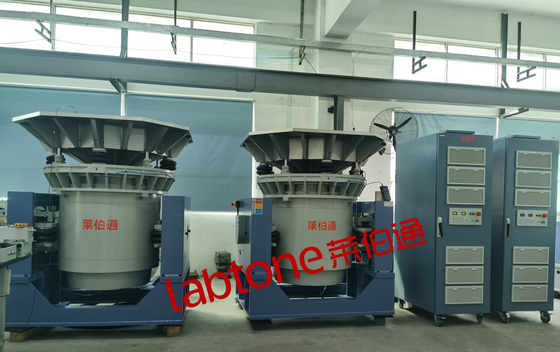

Product Images:

2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards 02700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards 1

2700Hz 6000kgf Electrodynamic Vibration Shaker With MIL-STD ISTA Standards 2
