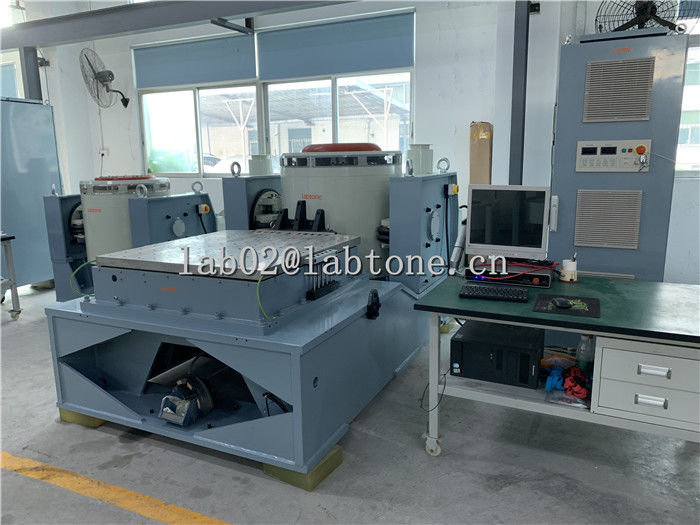

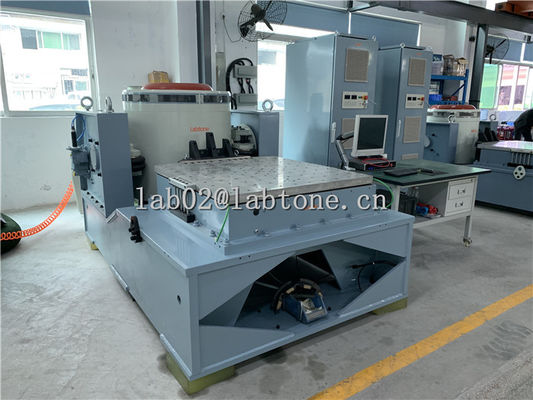

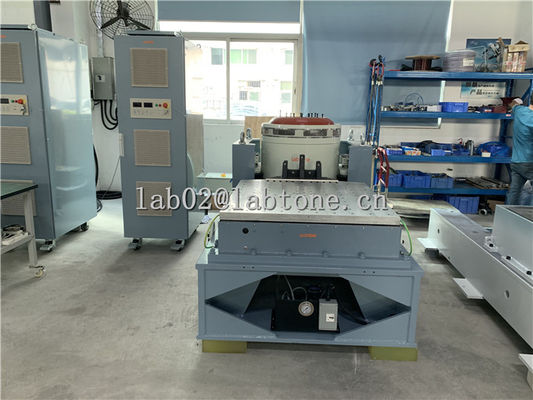

Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm

China Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm supplier
Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm supplier Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm supplier Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm supplier

Large Image :  Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV440

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Sine Force Peak: 40 KN (4000 Kg.f) Max Acceleration: 100g
Max Velocity: 2.0 Cm/s Frequency Range: 2-2500 Hz
Max Displacement: 100 Mm Power Supply: 3-phase AC 380V / 50Hz
Max. Payload: 500kg VIbration Controller: Random, Swept Sine, Classical Shock
Name: Air Cooled 40KN Vibration Test System With Vibrating Table 1000x1000mm

Air Cooled 40KN Vibration Test System With Vibrating Table 1000x1000mm



Technical Parameters

Shaker Specifications VG4000-100
Peak Sine (Pk) 4000Kg.f peak (40KN)
Random (RMS) 4000Kg.f r.ms (40KN) @ISO5344
Shock (Pk) 8000Kg.f peak (80KN) @6ms
Usable Frequency 5~3000Hz (DC- 4Hz Available but not assessed)
Maximum Displacement (p-p) 100mm (4inch) intermittence,75mm (3inch) continuous
Max. velocity 2m/s
Max. acceleration 100G (980 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz
Armature Diameter Ф440 mm
Armature Weight 40kg

Fundamental Resonance

Frequency (Bare table)

2,500 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

16 stainless steel M10 Inserts
Stray Flux Density <10gauss
Allowable partial force 500.N.M
Shaker dimensions 1290mmL×1010mmD×1145mmH
Weight of Shaker About 3000Kg
Compressed Air Requirement 0.7 Mpa
Power Amplifier Specifications SA403
Rated Output Capacity 40KVA
Signal to Noise Ratio Greater than 65 dB
Amplifier Efficiency Greater than 90%
Amplifier Overall Dimensions 650mmL×920mmD×2100mmH
Interlock Protection ●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel



Specifications: EV340-EV450



Model EV340

EV

350

EV

420

EV

430

EV

440

EV450
Vibration Generator

VG40

00/76

VG5000/76

VG2

000/100

VG3000/100

VG40

00/100

VG5000/100

Freque

ncy(Hz)

2-2500 2-2500 2-3000 2-2500 2-2500 2-2500

Max Exiting Force(

kg.f)

4000 5000 2000 3200 4000 5000
Max. Displacement (mmp-p) 76 76 100 100 100 100

Max. Accelera

tion(g)

80 100 90 71 66 71

Max. Velocity

(cm/s)

200 200 200 250 250 250
Payload(kg) 1000 1000 500 500 800 1000
Armature Mass(kg) 50 50 23 45 60 70

Armature Diamete

r(mm)

φ440 φ440 φ320 φ400 φ445 φ445
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 3500 3800 2000 3200 4200 4500

Vibration Generator Dimension L*W*H

(MM)

1100*1300*1520 1100*1300*1520 850*1000*1100 1100*1300*1440 1100*1300*1520 1100*1300*1520
Power Amplifier Amp55k Amp70k Amp25k Amp40k Amp60k Amp70k
Cooling Method Forced Air Cooling

Power Amplifier Weight

(kg)

800 900 550 600 800 900

Power Amplifier Dimension L*W*H

(MM)

800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements

3-phase AC

380V ±10% 50Hz

Aggregate Capacity

(KW)

80 90 45 64 85 85





Customer Service:





Warranty: 12 months from delivery, lifelong time maintenance.

After-sale service: feedback within 4-8 hours after getting the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Welcome to contact us with your vibration test inquiry.





Application:





Air Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mmAir Cooled 40KN Vibration Test System With Vibrating Table 1000 x 1000mm
