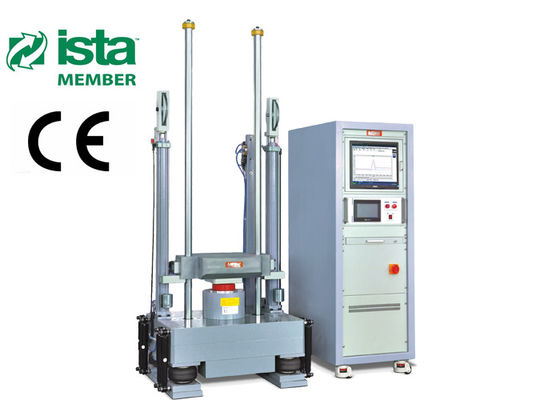

Simple Installation Mechanical Shock Test Equipment For Digital Cameras

Simple Installation Mechanical Shock Test Equipment For Digital Cameras

    • Simple Installation Mechanical Shock Test Equipment For Digital Cameras
    • Simple Installation Mechanical Shock Test Equipment For Digital Cameras
  • Simple Installation Mechanical Shock Test Equipment For Digital Cameras

    Product Details:

    Place of Origin: CHINA
    Brand Name: LABTONE
    Certification: CE, ISO
    Model Number: SKT30

    Payment & Shipping Terms:

    Minimum Order Quantity: 1SET
    Price: Negotiable
    Packaging Details: International wooden case
    Delivery Time: 45 working days
    Payment Terms: T/T
    Supply Ability: 15 Sets / Month
    Detailed Product Description
    Table Size: 40*40 (CM) Max. Specimen Weight: 30 Kg
    Max. Acceleration: Half Sine: 600G  Machine Dimension: 120*110*245 (cm)
    Controller Cabinet Dimension: W55*D50*H80 (cm) Machine Weight: 1900 (Kg)



    Simple Installation Mechanical Shock Test Equipment For Digital Cameras





    Product description


    Shock or bump test mainly simulate the impact effects of product and its components encountered in usage and transit process. Through standard and high-reproducibility instant energy exchange, you can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. Shock tester is one of destructive experiments, and do destructive test on the product to evaluate the product reliability and monitor the consistency of production line.



    Features :

    • The display mode, operating functions, message & program setting and height control are under humanized design; excellent repeatability; high accuracy; software is easy to operate with and time saving in personnel training.
    • Test data & waveform can be saved, transferred to report and printed out.
    • Follow requirement to select tester type & standard; offer customerized design case.
    • Testers & related mechanisms are patented; precise movement without error.





    Applications



    · Fragility test of products.



    · Shock standard test of products.



    · Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances,

    cosmetics, electronic parts, large-sized office machine, refrigerator and etc.



    · Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.



    · Free drop equivalent test packaged freights.



    Shock testing systems Specifications



    Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
    Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
    Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
    Max acceleration(G) half sine 600 600 600 500 500 300 300
    saw-tooth waveform 100 100 100 100 100 100 100
    square 150 150 150 150 100 100 100
    Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
    saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
    square   30~6 30~6 30~6 30~6 30~6 30~6
    Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
    Controller cabinet Dimension(cm) W55*D50*H80
    Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
    Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
    Requirements
    Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL
