Shock Tester, Shock Test System for Battery and Electronics with Payload 30kg

large.img.alt
large.img.alt

Large Image :  Shock Tester, Shock Test System for Battery and Electronics with Payload 30kg

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT30

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Model: HSKT30 Table Size: 300 X 300 Mm
Specimen Max Weight: 30 Kg Shock Pulse: Half Sine
Acceleration Range: 20-1500 G Pulse Duration Range: 0.5~30 Ms
High Light:

mechanical shock test

,

shock test machine

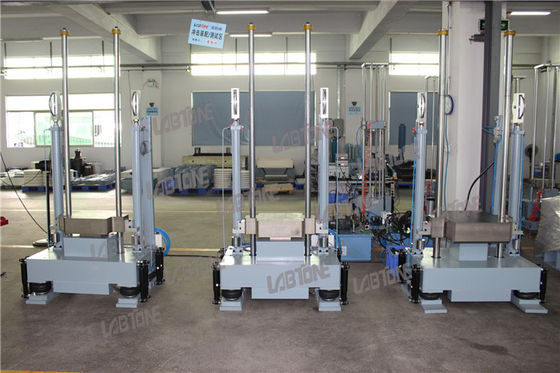

Shock Tester, Shock Test System for Battery and Electronics with Payload 30kg





Introduction



The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.





Technical Specifications



Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650








Specifications

  • TouchTest Shock 2 Controller for easy and safe operation
  • Forged aluminum table design for generating high acceleration shock pulses
  • Acceleration Kit to increase velocity change performance
  • Electric hoist lifting and positioning system enables precise drop repeatability
  • Floating Seismic Base to limit the shock energy that transmits to the floor
  • Full range of applications training programs available
  • Worldwide Customer Service department

Shock Tester, Shock Test System for Battery and Electronics with Payload 30kg 0

 Product Option Highlights

  • Customized table mounting patterns available
  • Dual Mass Shock Amplifiers to generate extremely high acceleration levels (30,000g+)
  • Additional Shock Pulse Programmers for short and long duration half sine, trapezoidal, and terminal peak sawtooth shock pulses
  • Test Partner Data Acquisition and instrumentation for data collection and analysis



Company Profile



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.

We sincerely invite you to visit our factory.





Warranty:



12 months from delivery, lifelong time maintainance.




After-sale service:



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.

In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)

After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.



Packaging:



Vacuum packing + Plywood case
