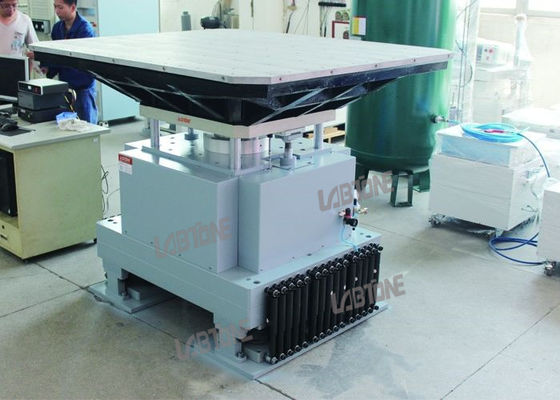

Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration

Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration
Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration

Large Image :  Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE ISO
Model Number: SKM700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: international wooden case
Delivery Time: 30days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration

Description
Payload: 100kg Table Size: 700*800 Mm
Wave Form: Haf Sine Pulse Acceleration Range: 5-100 G
Pulse Duration: 6-18ms Bumo Repetition Frequency: 1-120
Drop Height Range: 5-120mm Max Velocity Variation: 2.2m/s
High Light:

bump test vibration

,

vibration bump test

Mechanical Shock Absorber Testing Equipment 6-18ms Pulse Duration





Product Description


Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment

and other electronic electrician products during transport or using which may be subjected to repeated shocks.

Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.

The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.





Speicifications



Model SKM500 SKM700 SKM800 SKM1000
Table size(mm) 500*700 700*800 800*800 1000*1000
Payload(kg) 50 100 200 500
Wave form Half sine pulse
Acceleration range(G) 5-120 5-100 5-100 5-80
Pluse duration(ms) 6-18
Bump repetition frequency 1-120 1-120 1-120 1-80
Drop height range 5-120mm 5-120mm 5-120mm 5-180mm
Max velocity variation 2.2m/s 2.2m/s 2.6m/s 2.8m/s
Machine dimension(mm) 750*660*880 900*900*800 900*960*800 1200*1150*860
Machine weight(kg) 1000 1260 2160 3660
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m³ gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc





Packaging & Shipping



Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,

which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,

moisture corrosion, good transparency etc



Company Information


Labtone Test Equipment Co., Ltd. is the professional chinese manufacturer of Testing systems with 15 years excellent experience .
Our main product include Vibration testing systems, Shocking testing systems, Drop tester, Bump testing machines, Vibration-temperature humidity combined reliability testing systems, etc.
We work well with a lots distributor and endusers for 15years. Our goal: Quality first, reputation above all .

Our products have been exported to USA, Mexico, Colombia, Argentina, Dubai, Saudi Arabia, the Philippines, Indonesia, Malaysia, Vietnam, India and other countries.

We hope we can build A GOOD AND STABLE cooperation with you.





Our Services



1, 12 months warranty, lifelong maintenance. If any quality problems on our side occured in this period.

we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer

operation video and English operation muanual. We can provide video-conference. If customers require on-site service,

the transport and travel expense shall be borne by customer.



2, Help choose right model with series of service



3, Customization service-OEM,Design service,Buyer lable



4, Cooperate with measuring if need the third party verification
