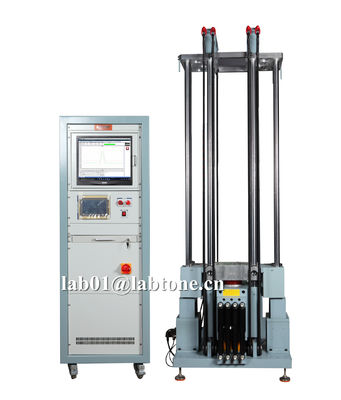

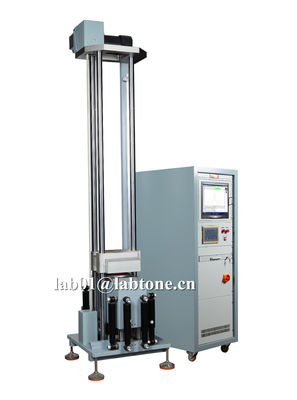

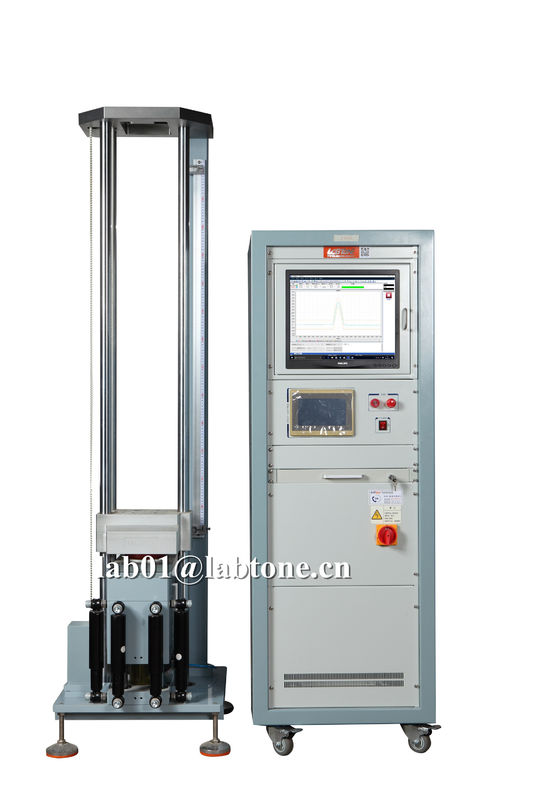

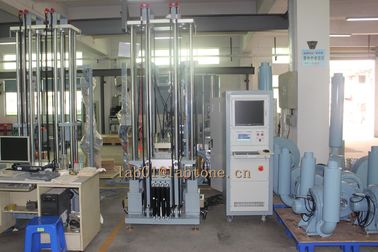

Shock Test Machine Meet JESD Standard 2900g @ 0.3ms, 1500g @0.5ms





Description of Shock Test Machine

The Mechanical Shock Test Method is intended to evaluate component(s) for use in electrical equipment.It is intended to determine the compatibility of the component(s) to withstand moderately severe shocks as a result of suddenly applied forces or abrupt change in motion produced by handling, transportation or field operation. Mechanical Shock of this type may disturb operating characteristics, particularly if the shock pulses are repetitive. This is a destructive test intended component qualification. It is normally applicable to cavity-type packages.Comply with JESD22-B104C, JESD22-B110B test standards.




Technical Specifications of Shock Test Machine



Operating platform 200 × 200 mm
Max. load 20 KG
Peak acceleration 30 to 3000G
Pulse duration 0.3~18 ms
Equipment dimensions 700mm L × 750mm D x 1900mm H
Equipment weight 550 kg
Power required AC 220V±10% 50Hz,0.5KVA
Air supply 6 kg / cm2
Supportive standard JESD22-B104C, JESD22-B110B
Shock measuring and analyzing system
Input channels 2 channels
Sampling frequency 192KHz
Pulse duration 50-1ms
Communication interface USB2.0
Operating system Windows 7/10
System acceleration sensor
Brand LAB
Model 21105
Output mode Charge type
Sensitivity 1 pC/g
Frequency range 1 to 10 KHz
Acceleration range 25000G
Operating environment -40 to +160℃





Other Models:



Model SKT50 SKT100 SKT200 SKT300 SKT500 SKT1000 SKT1500
Table size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Maximum Specimen Weight(Kg) 50 100 200 300 500 1000 1500
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 100 100 100 60 50 50 50
Pulse Duration (ms) half sine 30~1 30~2 30~2 20~3 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square 12~6 12~6 12~6 12~6 12~6 12~6 12~6
Machine Dimension(cm) 82x90x195 120x105x245 130x120x260 150x130x260 200x160x300 230x180x310 250x250x310
Controller cabinet Dimension(cm) W55 x D50 x H80
Machine Weight(Kg) 1050 2000 3200 4200 8500 15500 21500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL







Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification
