| Name: | Electrodynamic Shaker Performs Random Vibration Test For ISTA 6 Series- AMZON Testing | Sine Force: | 2000kg.f(20kN) |
|---|---|---|---|
| Max.payload: | 400kg | Displacement: | 76mm |
| Max Velocity: | 2.0m/s | Cooling Method: | Air-cooling |
| High Light: | Electrodynamic Vibration Test Machine,ISTA 2A Vibration Test Machine,ISTA 6A Amazon vibration shaker machine |
||

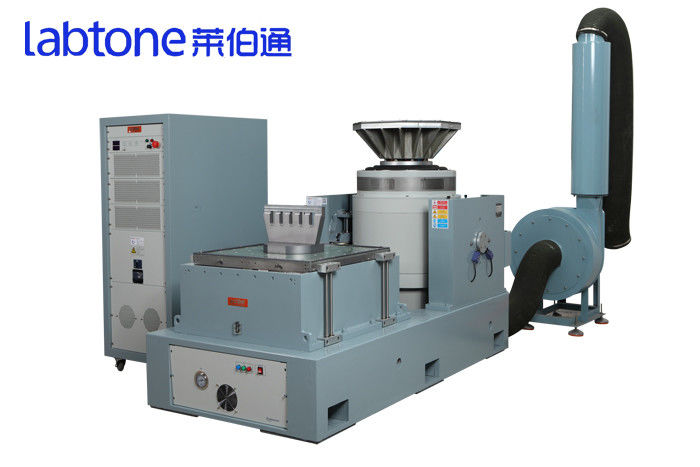

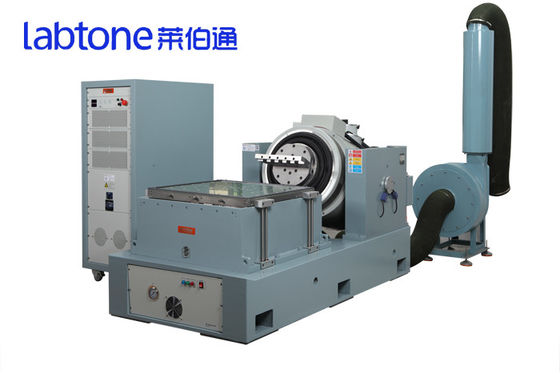

ISTA 2A and ISTA 6A Amazon Electrodynamic Vibration Test Machine
Electrodynamic Vibration Test Machine:
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
Vibration testing system Applications:
automotive,motorcycle, electronics,aerospace,vessel,telecommunication,optoelectronics ,instrument etc
Electrodynamic Vibration Test Table Specification:
| Shaker Specifications A20S34 | ||||
| Peak Sine (Pk) | 2400Kg.f peak (24KN) | |||
| Random (RMS) | 2200Kg.f rms (22KN) @ISO5344 | |||
| Shock (Pk) | 4400Kg.f peak (44KN) @6ms | |||
| Usable Frequency | DC～3000Hz | |||
| Maximum Displacement (p-p) | 76mm (3inch) | |||
| Max. velocity | 2m/s | |||
| Max. acceleration | Sine:100G (980 m/s2)；Random: 60G (588 m/s2) | |||
| Vertical Load Support | 300KG | |||
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz | |||
| Armature Diameter | Ф336 mm | |||
| Armature Weight | About 24kg | |||
|
Fundamental Resonance Frequency (Bare table) |
2,600 Hz (nom.) +/- 5% | |||
|
Load Attachment Points (Standard) |
21stainless steel M10 Inserts | |||
| Stray Flux Density | ＜10gauss | |||
| Allowable partial force | 500.N.M | |||
| Shaker dimensions | 1190mmL×860mmD×1060mmH | |||
| Weight of Shaker | About 1800Kg | |||
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
Size(mm): 300 x 300-1500x1500 or customized
Material: Aluminium /Magnesium
The expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping and minimizes the amplification factor of high-frequency resonance.
Material: Aluminium /Magnesium
According to the customer's actual demand, we can offer different shapes of the fixture, such as three-dimensional square, L and T shape.
