Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16

Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16
Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16

Large Image :  Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV430

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Max. Sine Force: 3000 Kg.f (30kN) Max. Random Force: 3000 Kg.f (30kN)
Max. Shock Force: 6000 Kg.f (60kN) Power Supply: AC 380V 50Hz
Max. Displacement: 100 Mm(p-p) Usable Frequency: 1-3000 Hz
High Light:

AC 380V Vibration Measurement Equipment

,

MIL-STD-810 Vibration Measurement Equipment

,

30kn shaker test equipment





Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16





Vibration Test Equipment Introduction:



Vibration testing is to simulate various environmental influences of vibration encountered by products in Transportation, Installation and Use, and to determine whether a product can withstand various environmental vibrations.



The vibration modes can be divided into sinusoidal vibration and random vibration. Sine vibration test method is often used in laboratory, to simulate rotation, pulsating, volatility (in ships, aircraft, vehicles, space vehicle) on the vibration and the analysis of the product structure resonance frequency and resonance point resides validation is given priority to, it is divided into frequency sweep vibration and fixed frequency vibration, its tougher depends on the frequency range, amplitude value and test duration. The random vibration is used to simulate the evaluation of the seismic strength of the overall structure of the product and the transportation environment in the packing state, the severity of which depended on the frequency range, GRMS, test duration and axial direction.



Vibration Test Equipment Technical Specifications



Shaker Specifications VG3000-100
Peak Sine (Pk) 3000Kg.f peak
Random (RMS) 3000Kg.f r.ms @ISO5344
Shock (Pk) 6000Kg.f peak @6ms
Usable Frequency 1-3000Hz
Maximum Displacement (p-p) 100 mm (4 inches)
Max. velocity 2m/s
Max. acceleration Sine:85G (883 m/s2);Random: 60G (588 m/s2)
Vertical Load Support 500 kg

Body Suspension Natural

Frequency (Thrust Axis)

Less than 2.5 Hz
Armature Diameter Ф440 mm
Armature Weight 35kg

Fundamental Resonance

Frequency (Bare table)

2,400 Hz (nom.) +/- 5%

Load Attachment

Points (Standard)

16 stainless steel M10 Inserts
Stray Flux Density <10gauss
Allowable partial force 500.N.M
Shaker dimensions 1290 x 1010 x 1400 mm (LxDxH)
Weight of Shaker About 2600Kg
System Environmental Requirement
Power Requirement 380VAC, 50 Hz, 3Ph, 56kVA
Operating Room Temperature 0 to 40 degree C
System Continuous Duty not less than 7 hours at the full ratings
Humidity 0 to 85%, non condensing
Compressed Air Requirement 0.7 Mpa





Other models: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000

Max. Displacement

(mm p-p)

38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Vibration Test Equipment Meet Standards:

MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Vibration Test Equipment Applicable Industries:

Automotive electronics device, Motormeter assembly, Automobile storage battery, Automotive electric equipments, Automotivemotor, Water-soluble dielectric battery, Safety valve, Auto air conditioning compressor etc.




Vibration Test Equipment Features:

  • Double magnetic circuit structure to ensure high magnetic field intensity & reduce flux leakage; Special degaussing structure can reduce flux leakage to below 1 mt
  • U-type spring ,rollers and linear bearing for strong resistance of deflecting load
  • Air spring are used for vibration isolation; Vibration system work steadily even with heavy load; no need special foundation
  •  Protection devices are provided for over-thermal, over-load, over-current, over-voltage, and over-displacement of the vibration tester; Electrical network protection devices for over-voltage, under-voltage, lacking phase; Drive power , current-limiting , soft-start, over-temperature, short-current,module fault protecting
  • Able to complete sine ,random , impact environmental tests
  • This system requires voltage fluctuation, ≤±10%
  • This system requires Grounding resistance, ≤4Ω
  •  High reliability, especially suitable for long-time operation





Our Services:

Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM, Design service,Buyer label



Detailed Pictures:

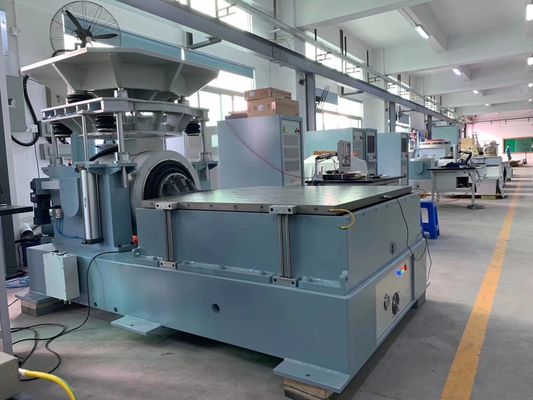

Dynamic Vibration Test Equipment High Force Shaker for ASTM D4169-16 0
