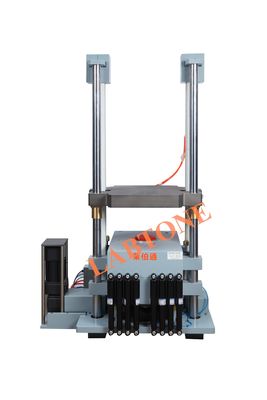

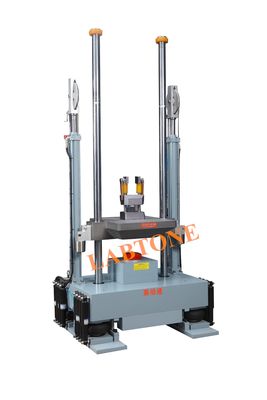

Bump Test Machine For IEC 60068-2-27 250m/S2 With Duration 6ms

Bump Test Machine For IEC 60068-2-27 250m/S2 With Duration 6ms
Bump Test Machine For IEC 60068-2-27 250m/S2 With Duration 6ms

Large Image :  Bump Test Machine For IEC 60068-2-27 250m/S2 With Duration 6ms

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKM500

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard plywood case
Delivery Time: 60 days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Product Name: Bump Test Machine Payload: 50kg
Wave Form: Half Sine Pulse Acceleration Range: 5-100G
Pulse Duration: 6-18ms Speed: 1-80 Times/ Min.
Table Size: 500 X 700 Mm Power: AC 220V 50Hz
High Light:

IEC 60068-2-27 Bump Test Machine

,

250m/S2 Bump Test Machine

,

duration 6ms bump test equipment



Bump Test Machine For IEC 60068-2-27 250m/S2 With Duration 6ms





Product Introduction for Bump Test Machine



Bump test machine is used for the laboratory simulation of the ability of the product to withstand collision damage in actual use, so as to assess the anti-collision ability of the product structure, and optimize the strength of the product structure through test data. The reliability of the product can be improved effectively by correctly evaluating the anti-collision ability of the product. The damage caused by collision during transportation and loading and unloading is simulated by laboratory test, so as to assess whether the buffering and vibration reduction of packaging parts can protect the products when they are subjected to collision in the process of transportation.





Specifications



Model SKM500 SKM800
Table size(mm) 500*700 800*800
Payload(kg) 50 200
Wave form Half sine pulse
Acceleration range(G) 5-120 5-100
Pluse duration(ms) 6--18
Bump repetition frequency(Hz) 1-120 1-80
Drop height range(mm) 10-950 10-950
Max velocity variation(m/s) 2.2 2.6
Machine dimension(mm) 1200×933×1923 1550*1040*1550
Machine weight(kg) 2000 2900
Power & Air supply AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder
Standards GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc





Working Princeple:



The working table of the bump tester is quickly raised to the set height by electric, and then the free-falling body hits the waveform generator on the base, achieving the purpose of bump test.



Packaging & Shipping



Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc





Services



Pre-sales:



  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:



  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:



  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
