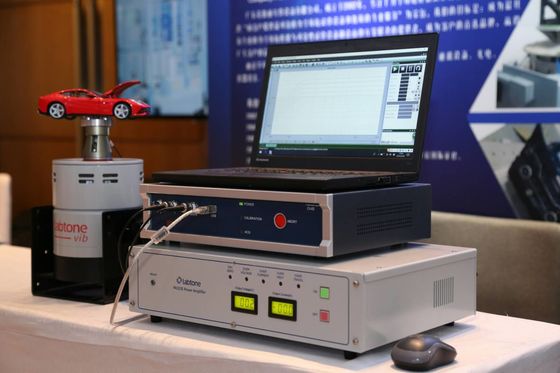

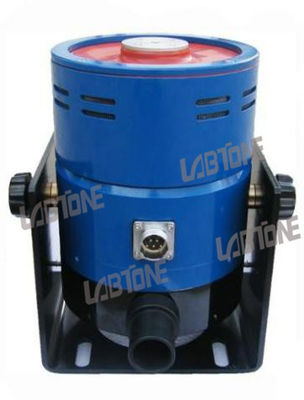

Air Cooling University Laboratory Mini Vibration Shaker

Air Cooling University Laboratory Mini Vibration Shaker
Air Cooling University Laboratory Mini Vibration Shaker Air Cooling University Laboratory Mini Vibration Shaker Air Cooling University Laboratory Mini Vibration Shaker

Large Image :  Air Cooling University Laboratory Mini Vibration Shaker

Product Details:

Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: ET30

Payment & Shipping Terms:

Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month
Detailed Product Description
Rated Sine Force: 300 N (30kg.f) Frequency Range: 5-6500Hz
Max. Acceleration: 35 G Max. Amplitude: 12 Mm
Max. Velocity: 1.5 M/s Machine Dimension: 200 Mm L X 265 Mm D X 200mm H
High Light:

Laboratory Mini Vibration Shaker

,

Air Cooling Mini Vibration Shaker

,

300N vibration shaker machine



Minitype Vibration Shaker, University Laboratory Vibration Test Machine


Introduction:

ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.


 Features:

  • Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
  • Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
  • Apply to the basic test of vibration engineering education equipment, etc.


Technical Specifications:


System ModelET55ET30ET10
Max. sine  force Kg.f (N)55 (550)30 (550)10 (550)
Frequency range (Hz)5~50005~65005~10000
Max. displacement (mm p-p)201210
Max. velocity (m/s)1.31.51.5
Max. acceleration (g)303535
Max. load (kg)20 21
Armature weight (kg)1.80.450.3
Over all Dimension mm (LxWxH)380 x 330 x 445200 x 265 x 200184 x 95 x 188
Shaker weight97 Kg1615
Cooling typeAir CoolingAir CoolingAir Cooling



Introduction to vibration controller

The vibration controller is of advanced distribution structure system, and closed-loop control is achieved by DSP processor. PC is independent of control loop to ensure real-time and high efficiency of the control system so as to timely and rapidly respond to any changes of the test system, and ensure control stability and high precision. 32-bit floating-point DSP processor with primary frequency up to 300MHz and 24-bit resolution ADC/DAC are used for hardware in coordination with high precision floating-point digital filtering and low noise design technology of hardware circuit. The dynamic random control range of the controller is more than 90dB and the signal to noise ratio is more than 100dB.



Our Services:


Pre-sales service
Technical Advisory: Testing method, laboratory planning and advice
Equipment Selection: Type-selecting scheme,FAQ
Product testing scheme
Selling service
Customer Communication,progress communication
Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning
Cooperate with measuring if need the third party verification
After-sale service
Quality assurance period for one year,lifelong maintenance.
Technical guidance
Feedback within 2 hours after get the call.
Accept OEM,Design service,Buyer lable

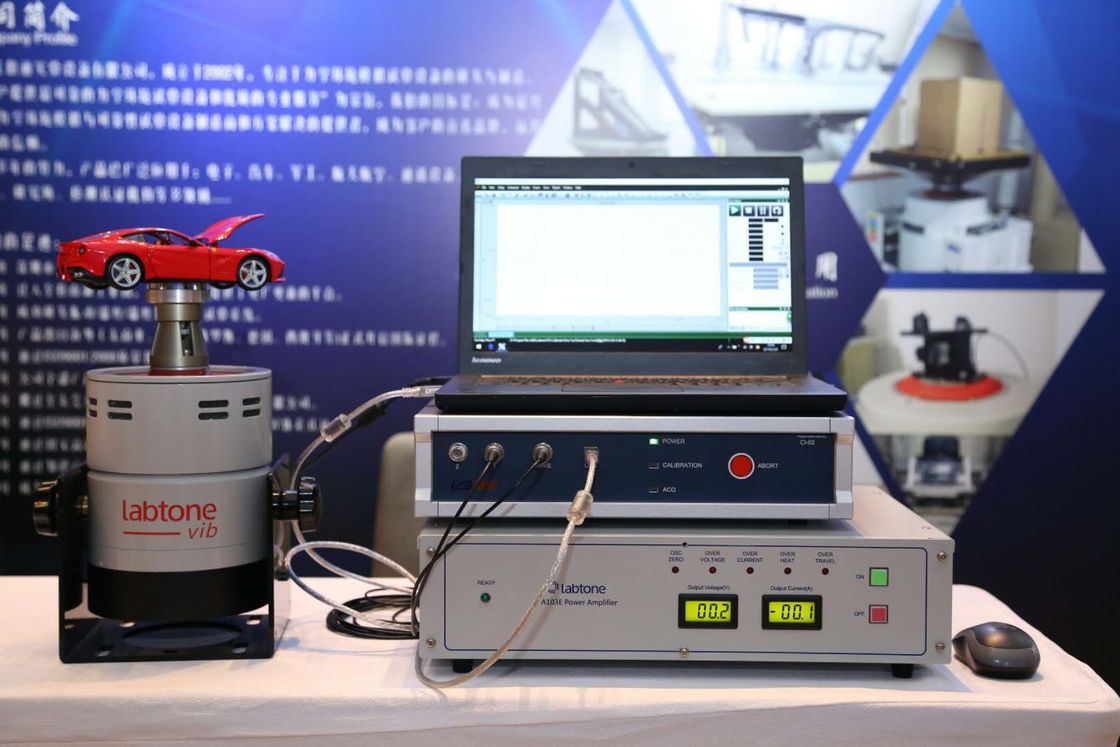

Air Cooling University Laboratory Mini Vibration Shaker 0

Power Amplifier
Air Cooling University Laboratory Mini Vibration Shaker 1
