JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms

China JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms supplier
JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms supplier JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms supplier JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms supplier

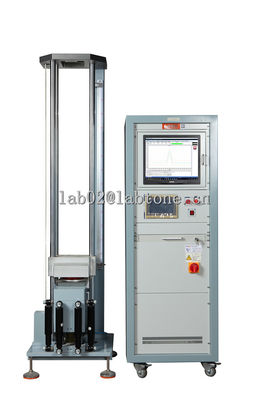

Large Image :  JEDEC -20 Mechanical Shock Test Equipment 900g @ 0.7ms 1500g @ 0.5ms & 2900g @ 0.3ms

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: JEDEC-20

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Contact Now
Detailed Product Description
Name: Mechanical Shock Test Equipment For 900g@0.7ms, 1500g@0.5ms, & 2900g@0.3ms Table Size: 200 X 200mm
Specimen Max Weight(kg): 5 Shock Pulse: Half Sine
Acceleration Range (m/s2): 20----3000g Pulse Duration Range (ms): 0.2~18
Max. Repetition Rate: Up To 120/min

Mechanical Shock Test Equipment For 900g@0.7ms, 1500g@0.5ms, & 2900g@0.3ms



Introduction



LABTONE provides shock testing equipment ranging in both size and performance capability. To help guide interested customers, we’ve put together a list of key considerations that help select the most appropriate shock test system



JEDEC-20 is the best Shock Machine to make sure the product, smartphones, tablets, computers and others mobiles ,can withstand shock. Apply high acceleration to computer's parts, Batteries , smart phones, tablets, laptop, cellular phones, and mobile products for product fragility test.



Main parameters of the shock tester
Operating platform 200 × 200 mm
Max. load 5KG
Peak acceleration 20 to 3500G (customization acceptable)
Pulse duration 0.3~18ms (customization acceptable)
Equipment dimensions 660×700×2380mm
Equipment weight 850 kg
Power & Air Supply

220VAC±10% 60Hz,2kVA

0.5Mpa—0.7Mpa



Standard Shock Test Systems



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table Size (cm) 40 x 40 50 x 60 70 x 80 100 x 100 120 x 120 150 x 150 200 x 200
Max. Specimen Weight(kg) 30 50 100 200 300 600 1000



Max.

Acceleration (G)

Half Sine 600 600 600 500 500 300 300
Saw-tooth 100 100 100 100 100 100 100
Square   150 150 150 100 100 100



Pulse duration

(ms)

Half Sine 30—0.5 30~1 30~1 30~2 20~3 20~3 20~3
Saw-tooth 18~6 18~6 18~6 18~6 18~6 16~6 18~6
Square   30~6 30~6 30~6 30~6 30~6 30~6
Controller cabinet dimension(cm) W55*D50*H80
Machine weight(Kg) 1900 2300 3200 4200 8500 15500 21500
Power supply 3(phase) AC380V 50/60Hz Compressed air 0.5~0.8MPa
Standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL





Purpose of Shock Testing

· The purpose of shock testing is to determine the fragility of products.

· Ruggedness is a desirable product characteristic.

· A certain amount of ruggedness is necessary for the product's proper functioning.

· Manual handling during distribution normally will "exceed" product ruggedness so protective packaging is usually required

· Shock testing can be useful to improve the ruggedness of designs and add value to the product

· Traditional shock fragility testing used SRS techniques because we lacked knowledge of what inputs were likely.

· SRS was well established in architecture and the building industry.



Shock Testing : End Results



· Highly reliable and more robust product

· Identify and correct design deficiencies

· Facilitate world-wide shipment and delivery of a high-quality product

· Better able to meet customer demands and warranty Claims

Reduce costs and create profit!!



Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
