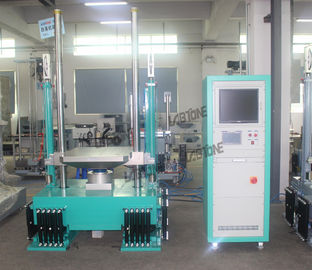

100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F

100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F
100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F 100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F 100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F

Large Image :  100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT100
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F

Description
Table Size: 70 X 80 Cm Max Load: 100 Kg
Max. Acceleration: Half Sine: 600G Machine Dimension: 130*120*260 Cm
Machine Weight: 3200 Kg Power Supply: AC 380V 50Hz
High Light:

mechanical testing equipment

,

vibration and shock testing



100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F




Product Features


Multi test-conditions application

High Reproducibility

Easy Maintenance for Long Term Usage

No-brainer Tester to operate

Easy Setting with Simple Construction

Set-up by Double-Layered Shock Absorber





Mode Specifications



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL



Applications



  • Aerospace and Defense

  • Automotive

  • Consumer Electronics

  • Protective Packaging



Shock test System Block Diagram



100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F 0





Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run
  • Calibration (when Third Party’s verification is required)



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.

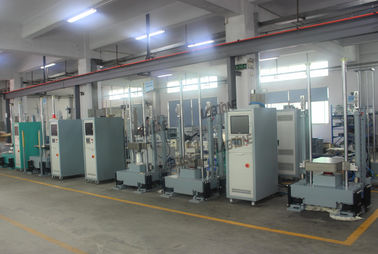

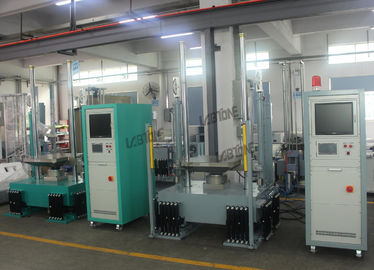

Production Line:



100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F 1100kg Payload Mechanical Shock Test Machine, Table Size 70*80 cm Meet MIL- STD -810F 2
