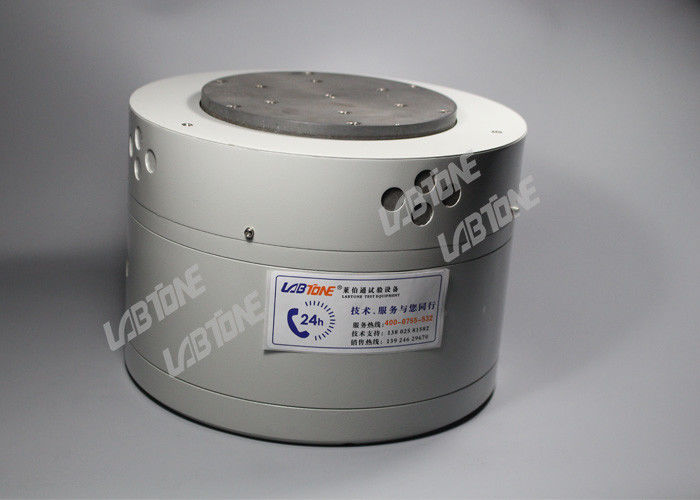

Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration

Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration
Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration

Large Image :  Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: ET50
Payment & Shipping Terms:
Minimum Order Quantity: 1 SET
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 30 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration

Description
Product Name: Standard Vibration Table Frequency Range: 2-3800Hz
Max. Acceleration: 37 G Max. Amplitude: 10 Mmp-p
Max. Velocity: 1.2 M/s Effective Load: 10kg
Rated Sine Force: 500 N (50kg.f)
High Light:

electrodynamic vibration shaker system

,

vibration testing equipment

Electrodynamic Vibration Shaker Standard Vibration Table For Acceleration Sensor Calibration





Mini Vibration Test System



ET series standard vibration table with light weight, small volume, convenient to move, is widely used in the acceleration sensor calibration, the tiny parts of resistance to vibration test, fatigue test and mechanical impedance test. At the same time, the ET series can also be used for teaching and scientific research and laboratory.





Specifications



Model ET50
Rated Sine Exiting Force 50kg.f(500N)
Rated Random Exiting Force 38kg.f(380N)
Frequency Range 2-3800Hz
Max. Acceleration 37G
Max. Amplitude 10mmp-p
Max. Velocity 1.2m/s
Armature Mass 1.2kg
Machine Dimension

DIA 270 * H195mm

Effective Load

10kg

Diameter of armature

Ф170mm

Output Power

800va

Output Voltage

38VRMS

Weight

About 45Kg

Amplifier cabinet dimension

430mm×200mm×500m





Product Application



Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.





Features



  • Apply to high precision vibration meter calibration, mechanical impedance test, vibration analysis of the vibration source
  • Apply to various of sensor, electronic, electric machines and other small lightweight vibration test .
  • Apply to the basic test of vibration engineering education equipment, etc.

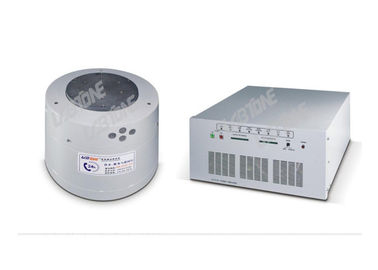

Compose of vibration generator, power amplifier, vibration controller, signal generator, acceleration sensor.





Features of vibration controller



  • High performance and reliability
  • Simple operation
  • Strong function and flexibility
  • Safety of test

  • Generation of test report





Our Services:



Pre-Sales Service



1)Technical consultation: test method, laboratory planning and suggestion.

2)Equipment selection: selection scheme, FAQ.

3)Product testing scheme.

4)Customer communication and progress report.





After-Sales Service



1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.

2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.

3)Technical support: special paid services are provided according to customer’s needs.
