2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost

2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost
2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost 2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost 2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost

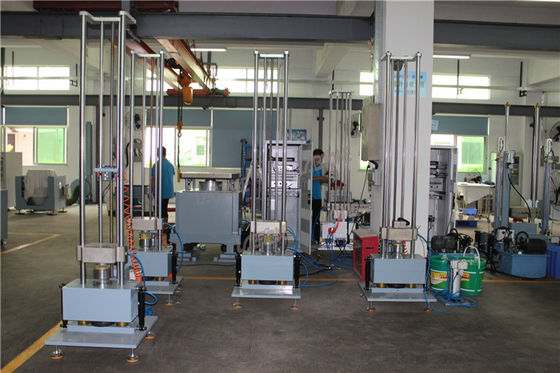

Large Image :  2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost

Product Details:

Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: HSKT10

Payment & Shipping Terms:

Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Model: HSKT10 Table Size: 200 X 250
Specimen Max Weight(kg): 10 Shock Pulse: Half Sine
Acceleration Range (m/s2): 20-2000 Pulse Duration Range (ms): 0.2~18
High Light:

shock and drop testing

,

mechanical testing equipment



2000G Mechanical Shock Test Equipment Perform UN38.3 for Battery with Low Cost




Product description:


Main applications: mobile phones, computer components, optical components, connectors, etc, also used to test the shock absorbance ability of materials



The precise-type high-acceleration shock tester can provide all half-sine short wave specification specified in JESD22-B110. To meet them, merely change different shock rubber-pad on shock seat. The wave is complete with high repeatability, able to provide user accurate test result.
Conform to different test specs such as JESD22-B110 and IEC spec.





Technical Parameters:



Model HSKT10 HSKT30
Table size (mm) 200x250 300x300
Shock pulse Half sine
Maximum Specimen Weight(Kg) 10 30
Acceleration Range(G) 20 ~ 2000 20 ~ 1500
Pulse Duration (ms) 0.2~18 0.5~30
Machine Dimension(mm) 660x700x2380 720x680x1890
Utility
Requirements
AC220V 50Hz 5A,Air pressure: more than 0.5Mpa
Machine Weight(Kg) 820 650





Main performance:

  • Free drop type shock tester using hydraulic lifting and HP fluid braking;
  • Use of pneumatic-hydraulic boosting and strong friction brake to prevent secondary shock braking;
  • Shock measurement device: single-channel data acquisition, simultaneous acceleration data measurement, storage, report printing, data callback, database management of two channels.
  • Use of rubber module, producing a wide range of half sine pulse with arbitrary action time.
  • Availability for equivalent drop test of packing boxes.





Equipment composition:



No. Equipment name Model Qty.
1 Shock tester table HSKT10 1set
3 Controller SKC-1 1 set
4 Shock measurement device ST-2 1 set
5 Sensor LAB 1pcs
6 Control computer   1 set
7 Waveform generator HB01 1 set
8 Safety device Audible and visual alarm 1 set
9 Attached accessories Tools, clamps/instructions, installation disc, etc. 1 set







Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification





Company Profile:



Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.

Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.

Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.



We sincerely invite you to visit our factory.





Packaging:



bubble bag + vacuum package + plywood case
