1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force

1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force
1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force

Large Image :  1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force

Product Details:

Place of Origin: China
Brand Name: LABTONE
Certification: ISO,CE
Model Number: HVT1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45-60 Work Days
Payment Terms: T/T
Supply Ability: 15 Sets / Month
Detailed Product Description
Name: 1M Environmental Temperature Humidity Combined Vibration Test Machine 20KN Force Vibration Exciting Froce: 300kg.f~5000kg.f
Chamber Dimension(inside): 500*750*600, 600*850*800, 1000*1000*800,1000*1000*1000 Mm Temprature Range: -70~+150℃(Max)
Humidity Range: 20~98%R.H Vibration Test Type: Sine, Random, Classic Shock, Etc.
High Light:

environmental test chambers

,

environmental testing equipment

1M Environmental Temperature Humidity Combined Vibration Test Machine 20KN Force









Labtone Test Equipment Co., Ltd. is a +16 year China manufacture of reliable, cost-effective equipments . Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Machine, Drop Tester, Transportation Simulators, Combined Environmental Test Chambers.



Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expand 6,000 square meter facility in Donguan, GuangDong in 2015.Today, Our products are found around the world in electronics, automotive,automotive,aerospace,telecommunication, optoeletronics instrument and industrial machinery applications. Our experience, and commitment to new product development, has resulted in products that are easy to use,accurate and designed for decades of service



Labtone products carry a one-year(12months) Warranty and are available direct from our factory in Dongguan, China. We provide comprehensive factory service and support,technical literature, manuals and guides as well as having a qualified staff of experts to help solve your application issues.

.



Features

  •  Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.
  • Adopts portable track design to perform integrated or single element test easily.
  • Our vibration test systems are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.



Specifications

Main Environment Temperature, Humidity, Vibration
Vibration Exciting Force 300kg.f~5000kg.f
Frequency range 2-3000Hz
Velocity 2.0 m/s
Displacement 50.8~100mmp-p
Chamber Inner Size 500x750x600 600x850x800 1000x1000x800 1000x1000x1000
Temperature Range -70 ~+150℃(Max.)
Humidity Range 20~98%R.H(Max.)
Type of Vibration Test Sine, Random, Classical Shock, Resonant search and dwell, sine plus random, random and random, etc.





Connection mode:

1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 0

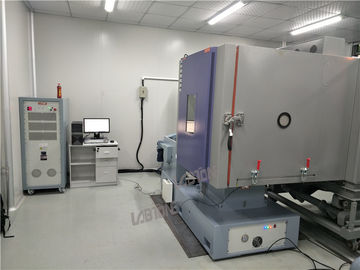

Vibration test systems and test chamber connect directly

1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 1

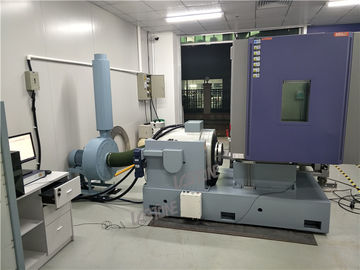

Vibration test systems and test chamber connect through transition connector

1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 2

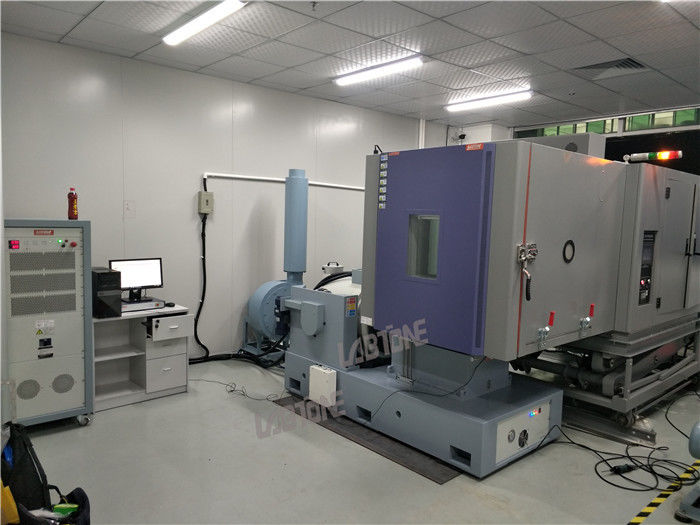

Vibration test systems and test chamber connect through the table

1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 3



Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
1M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 41M Environmental Temperature Humidity Chamber Combined Vibration Test Machine 20KN Force 5
