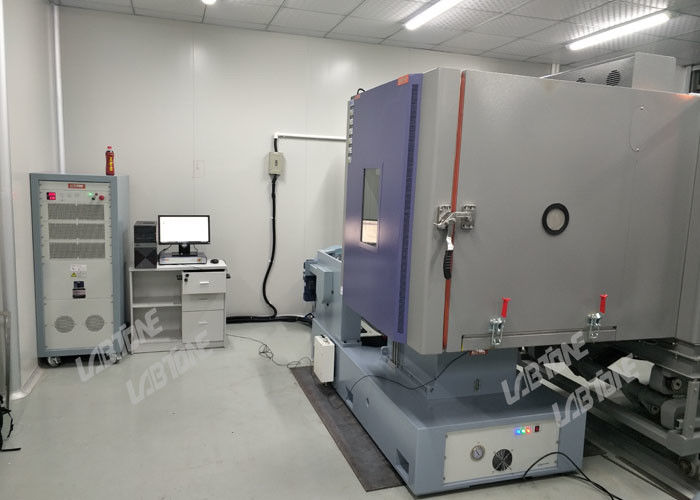

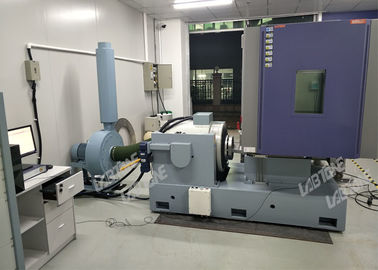

High Low Temperature Vibration Chamber For Battery Integrated Environmental Test

High Low Temperature Vibration Chamber For Battery Integrated Environmental Test
High Low Temperature Vibration Chamber For Battery Integrated Environmental Test High Low Temperature Vibration Chamber For Battery Integrated Environmental Test

Large Image :  High Low Temperature Vibration Chamber For Battery Integrated Environmental Test

Product Details:
Place of Origin: China
Brand Name: LABTONE
Certification: ISO,CE
Model Number: HVT300
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: International standard wooden case
Delivery Time: 45-60 working days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

High Low Temperature Vibration Chamber For Battery Integrated Environmental Test

Description
Product Name: High Low Temperature Vibration Chamber Chamber Dimension(inside): 500*750*600, 600*850*800, 1000*1000*800,1000*1000*1000 Mm
Temprature Range: -70~+150℃(Max) Humidity Range: 20~98%R.H(Max)
Vibration Test Type: Sine, Random, Classic Shock, Etc. Main Environmental: Vibration,Temperature,Humidity
High Light:

environmental test chambers

,

environmental testing equipment



High Low Temperature Vibration Chamber For Battery Integrated Environmental Test​





Specifications



Main Environment Temperature, Humidity, Vibration
Vibration Exciting Force 300kg.f-5000kg.f
Ambient Box Size 500*750*600  600*850*800  1000*1000*800  1000*1000*1000
Temperature Range -70℃~150℃ (Max)
Humidity Range 20-90%R.H(Max)
Type of Vibration Test Sine Vibration, Random Vibration, Classical Shock, etc

Any special requirement please feel free to contact us and we will try to realize it.





Description


We are always focused on the latest development of reliable testing technologies, and also value the importance of upgrading the technologies of the equipment. Requirement for “Environment Simulation” also helps the clients to realize the importance of vibration platform and test chambers provided by supplier. We can provide broad range of combined environment testing systems according to the clients’ requirements. For example: 3 to 4 integrated testing setup scheme (air-cooled vibration test system complimented by low pressure test chamber), multi-axis vibration test and latest testing technologies.





Introduction



The Integrated Environmental Test System is a combination of test chamber and vibration test system,whereby different temperature(high/low temperature),humidity, vibration(sinusoidal/random)and electrical stress is applied on the specimen according to the preset period to perform “Environment Simulation” of temperature, humidity and vibration. As compared to single element test, this test can simulate the transport and use environment of the products more realistically. It is an important methodology to assess and evaluate the adaptation of product towards environmental changes, to expose the flaw in the products and also to assist in development of new product, appraisal and mass production.

  • Independent control system: can complete high temperature, low temperature, constant temperature, constant humidity, vibration test and integrated test.
  • Adopts portable track design to perform integrated or single element test easily.
  • Our vibration test systems are compatible with international test chambers of different brands. Labtone is in charge of assembly and provide the clients with integrated environment test system of different specifications and performance.





Customer Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).



After-Sales:

  • Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
  • Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
  • Technical support: special paid services are provided according to customer’s needs.
