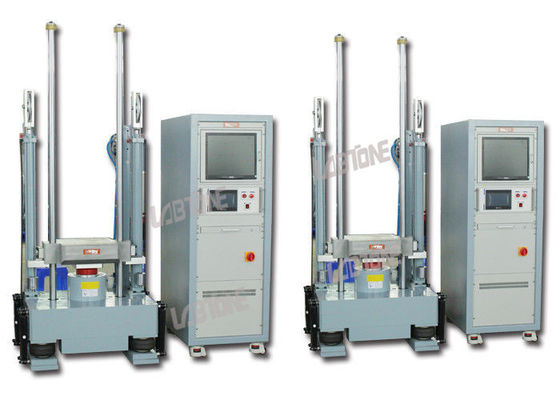

Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27

Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27
Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27 Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27 Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27

Large Image :  Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27

Product Details:
Place of Origin: CHINA
Brand Name: LABTONE
Certification: CE, ISO
Model Number: SKT50
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: Negotiable
Packaging Details: International wooden case
Delivery Time: 45 working days
Payment Terms: T/T
Supply Ability: 15 Sets / Month

Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27

Description
Table Size: 50*60 (CM) Max. Specimen Weight: 50 Kg
Max. Acceleration: Half Sine: 600G Machine Dimension: 115*100*260 (cm)
Controller Cabinet Dimension: W55*D50*H80 (cm) Machine Weight: 1900 (Kg)
High Light:

shock test machine

,

shock test equipment



Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27





Product description


Shock or bump test mainly simulate the impact effects of product and its components encountered in usage and transit process. Through standard and high-reproducibility instant energy exchange, you can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. Shock tester is one of destructive experiments, and do destructive test on the product to evaluate the product reliability and monitor the consistency of production line.





Shock testing systems



Model SKT30 SKT50 SKT100 SKT200 SKT300 SKT600 SKT1000
Table size (cm) 40*40 50*60 70*80 100*100 120*120 150*150 200*200
Maximum Specimen Weight(Kg) 30 50 100 200 300 600 1000
Max acceleration(G) half sine 600 600 600 500 500 300 300
saw-tooth waveform 100 100 100 100 100 100 100
square 150 150 150 150 100 100 100
Pulse Duration (ms) half sine 40—0.2 40~1 40~1 30~2 20~3 20~3 20~3
saw-tooth waveform 18~6 18~6 18~6 18~6 18~6 18~6 18~6
square   30~6 30~6 30~6 30~6 30~6 30~6
Machine Dimension(cm) 120*110*245 130*140*260 130*120*260 150*130*260 200*160*300 230*180*310 250*220*310
Controller cabinet Dimension(cm) W55*D50*H80
Machine Weight(Kg) 1900 2300 3200 4200 8500 15500 19500
Utility 3-phase AC380V 50/60Hz 0.5~0.8MPa
Requirements
Conforming standards GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL






Features

  • The display mode, operating functions, message & program setting and height control are under humanized design; excellent repeatability; high accuracy; software is easy to operate with and time saving in personnel training.
  • Test data & waveform can be saved, transferred to report and printed out.
  • Follow requirement to select tester type & standard; offer customerized design case.
  • Testers & related mechanisms are patented; precise movement without error.



Applications

  • Fragility test of products.
  • Shock standard test of products.
  • Fragility test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts, large-sized office machine, refrigerator and etc.
  • Shock standard test for digital cameras, smart phones, tablets, mobiles, displays, small household appliances, cosmetics, electronic parts large-sized office machine, refrigerator and etc.
  • Free drop equivalent test packaged freights.





Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27 0Mechanical Shock Impact Test Machine For 50kg Payload With IEC -68-2-27 1
