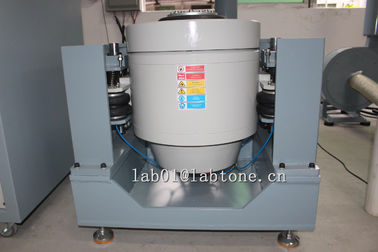

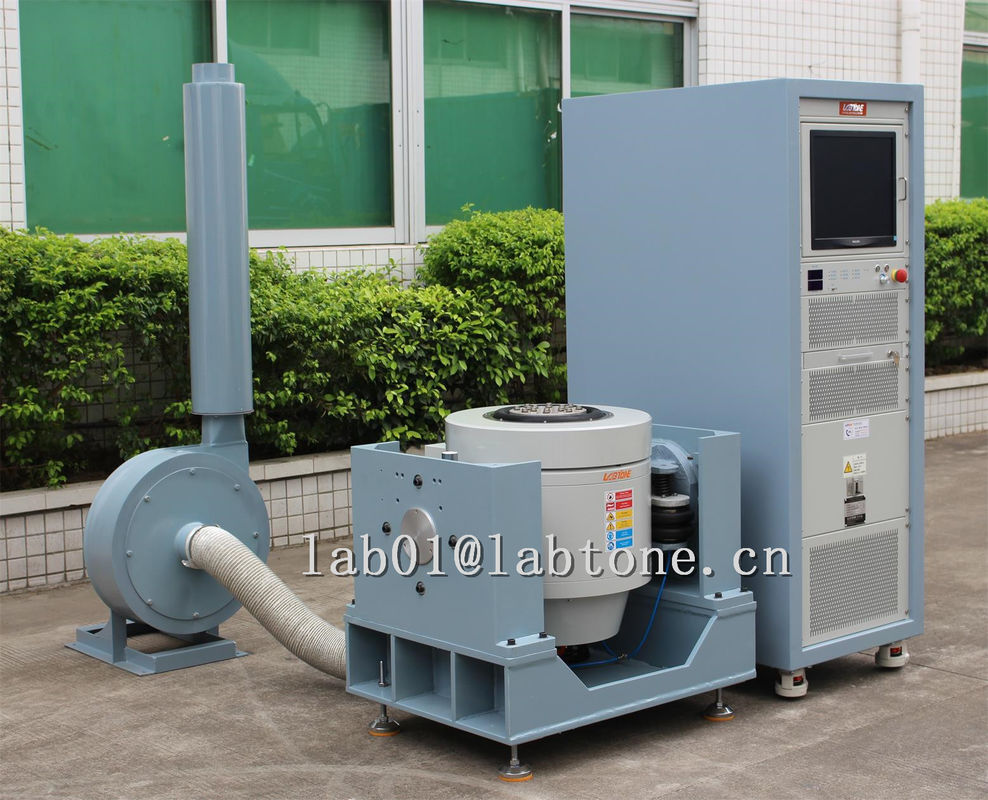

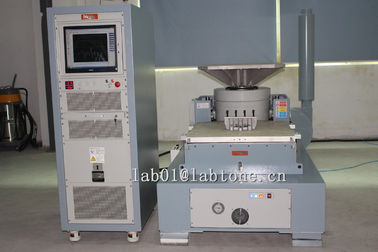

40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement

40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement
40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement 40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement 40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement

Large Image :  40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement

Product Details:
Place of Origin: Dongguang, China
Brand Name: LABTONE
Certification: CE / ISO
Model Number: EV440
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case with Vacuum Packing
Delivery Time: 45 Working Days
Payment Terms: T/T, L/C
Supply Ability: 15 Sets / Month

40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement

Description
Sine Force Peak: 40 KN (4000 Kg.f) Max Acceleration: 66 G
Max Velocity: 250 Cm/s Frequency Range: 2-2500 Hz
Max Displacement: 100 Mm Max Payload: 800 Kg
High Light:

packaging testing equipments

,

vibration test table



40kN Sine Force Vibration Testing Table, 100mm Big Displacement For Heavy Specimen





Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.





Key Applications:
  • Automotive parts and systems - qualification testing
  • Electronic assembly, computer equipment testing
  • Avionics and military hardware testing
  • Satellite component testing
  • Product and package testing
  • General stress screenin



Features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability;
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation;
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion;
  • Quick self-diagnosis with safety interlock, high safety reliability;
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance;
  • Provide horizontal and vertical expansion platform for different application;
  • Simple controller operation.



Working Principle:



40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement 0





Specifications: EV340-EV450



Model EV340 EV350 EV420 EV430 EV440 EV450
Vibration Generator VG4000/76 VG5000/76 VG2000/100 VG3000/100 VG4000/100 VG5000/100
Frequency(Hz) 2-2500 2-2500 2-3000 2-2500 2-2500 2-2500
Max Exiting Force(kg.f) 4000 5000 2000 3200 4000 5000
Max. Displacement (mmp-p) 76 76 100 100 100 100
Max. Acceleration(g) 80 100 90 71 66 71
Max. Velocity(cm/s) 200 200 200 250 250 250
Payload(kg) 1000 1000 500 500 800 1000
Armature Mass(kg) 50 50 23 45 60 70
Armature Diameter(mm) φ440 φ440 φ320 φ400 φ445 φ445
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 3500 3800 2000 3200 4200 4500
Vibration Generator Dimension L*W*H(MM) 1100*1300*1520 1100*1300*1520 850*1000*1100 1100*1300*1440 1100*1300*1520 1100*1300*1520
Power Amplifier Amp55k Amp70k Amp25k Amp40k Amp60k Amp70k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 800 900 550 600 800 900
Power Amplifier Dimension L*W*H(MM) 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920 800*550*1920
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 80 90 45 64 85 85





Packaging:



40kN Sine Force Vibration Testing Table , Electro Dynamic Shaker 100mm Big Displacement 1





Warranty: 12 months from delivery, lifelong time maintainance.

After-sale service: feedback within 4-8 hours after get the call or email.

Service: OEM, ODM



Certificate: China official third-party calibration report / CE Certification



Thank you for your interests, and welcome to contact us with your test inquiry.
