Product Details:
|
| Product Name: | Shock Impact Test Machine | Max. Specimen Weight: | 200 Kg |
|---|---|---|---|
| Max. Acceleration: | Half Sine: 500G | Machine Dimension: | 150*130*260(cm) |
| Controller Cabinet Dimension: | W55*D50*H80 (cm) | Machine Weight: | 4200 (Kg) |
| Table Size: | 100*100 （CM） | ||
| High Light: | mechanical shock test,shock test machine |
||

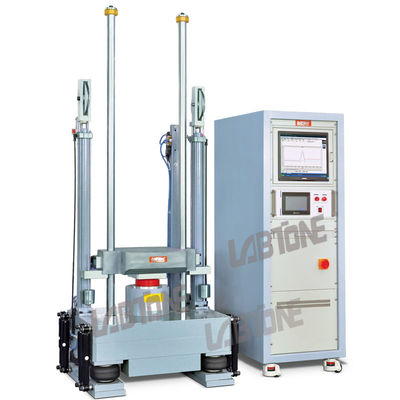

Shock Impact Test Machine For Cellphone And Battery Shock Test
Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | |
| Table size (cm) | 50*60 | 70*80 | 100*100 | 120*120 | 150*150 | 200*200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 600 | 1000 | |
| Max acceleration(G) | half sine | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 150 | 150 | 150 | 100 | 100 | 100 | |
| Pulse Duration (ms) | half sine | 40~1 | 40~1 | 30~2 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | 30~6 | |
| Machine Dimension(cm) | 130*140*260 | 130*120*260 | 150*130*260 | 200*160*300 | 230*180*310 | 250*220*310 | |
| Controller cabinet Dimension(cm) | W55*D50*H80 | ||||||
| Machine Weight(Kg) | 2300 | 3200 | 4200 | 8500 | 15500 | 19500 | |
| Utility Requirements | 3-phase AC380V 50/60Hz 0.5~0.8MPa | ||||||
| Conforming standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||
Product description
Shock or bump test mainly simulate the impact effects of product and its components encountered in usage and transit process. Through standard and high-reproducibility instant energy exchange, you can analyze the product ability to tolerate the strong external stress and the degradation of structural weaknesses to quickly obtain the data of structure strength, anti-shock appearance and anti-drop. Shock tester is one of destructive experiments, and do destructive test on the product to evaluate the product reliability and monitor the consistency of production line.
Features
Apply free-drop model; precisely simulate the actual environment.Perform solid shock impact; no second rotating or displacing problem.Full digitizing control system offers high efficiency.Speed range is wideFast in changing wave model.Comply with all commercial & military test specs.
Shock testing System Block Diagram
