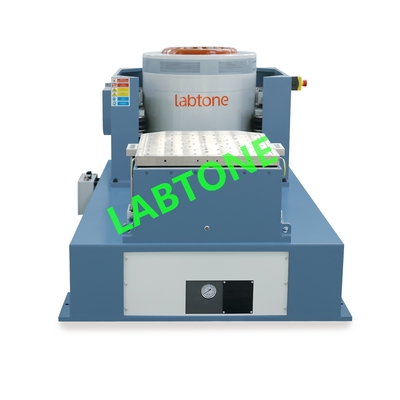

1-3000Hz Vibration Test System AC 380V With Head Expander And Slip Table

Product Description:

The working principle of the electrdynamic vibration exciter is similar to a loudspeaker whereby electrical conductor is moved by the action of electromagnetic force in the magnetic field. The force to accelerate the moving part is generated by the balance between driving current and magnetic flux. Therefore, by controlling the driving current, one can control of the vibration generator.

The maximum acceleration level of the electromagnetic vibration exciter is determined by the maximum current and the load. At low frequency, displacement of moving part will impose a limitation and the acceleration will not reach high level. The resonance frequency of the moving element is set higher than the upper limit of the frequency range.

The performance of vibration generator can be reflected by the chart that display the maximum acceleration under different frequency. By using a log-log plot, the displacement can be restricted to a linear representation with slope of 6 dB/octave.



Features:

• Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
• Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
• High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
• Quick self-diagnosis with safety interlock, high safety reliability
• Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance

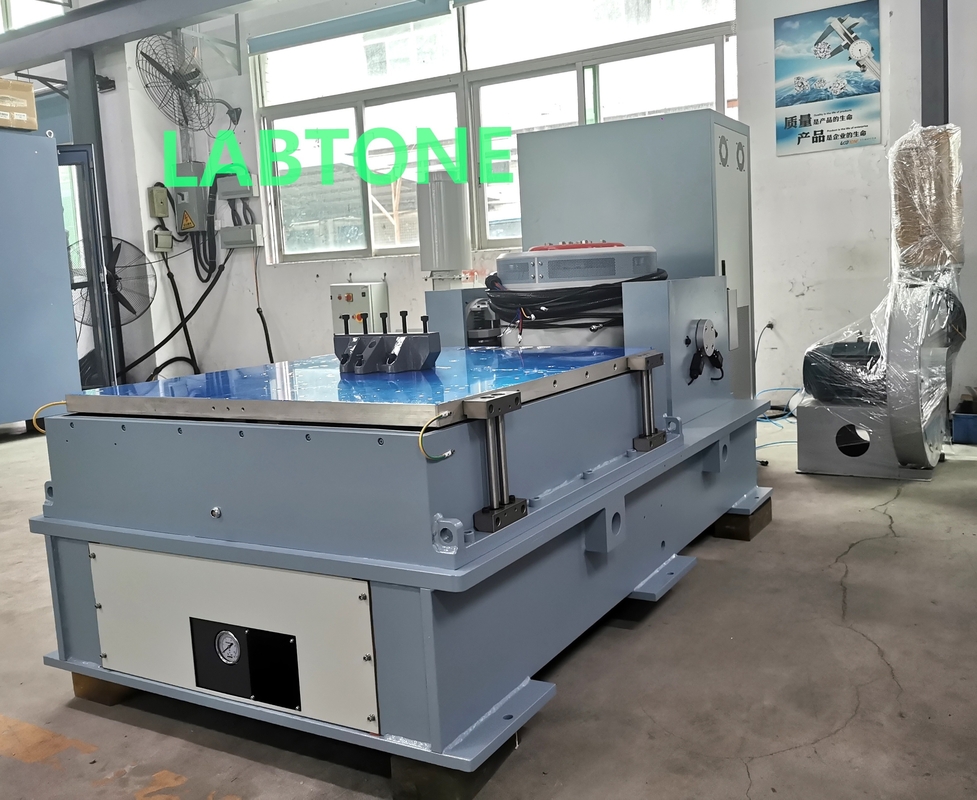

• Provide horizontal and vertical expansion platform for different application
• Simple controller operation



Technical Parameters:

Shaker Specifications A20S34
Peak Sine (Pk)	2200Kg.f peak (22KN)
Random (RMS)	2200Kg.f r.ms (22KN) @ISO5344
Shock (Pk)	4400Kg.f peak (44KN) @6ms
Usable Frequency	1～3000Hz
Maximum Displacement (p-p)	51 mm (2 inch)
Max. velocity	2m/s
Max. acceleration	100g
Vertical Load Support	300 kg
Body Suspension Natural Frequency (Thrust Axis)	Less than 2.5 Hz
Armature Diameter	Ф342 mm
Armature Weight	24 kg
Fundamental Resonance Frequency (Bare table)	2,600 Hz (nom.) +/- 5%
Load Attachment Points (Standard)	16 stainless steel M10 Inserts
Stray Flux Density	＜10gauss
Allowable partial force	500.N.M
Shaker dimensions	1050L x 900W x 1040H mm
Weight of Shaker	About 1960 Kg
Power Amplifier Specifications LA20K
Rated Output Capacity	24 KVA
Signal to Noise Ratio	Greater than 65 dB
Amplifier Efficiency	Greater than 90%
Amplifier Overall Dimensions	620mmx960mmx1500mm
Weight of Amplifier	About 460 Kg
Interlock Protection	●Input Over/Under Voltage ●Logic Fault ●Output Over Voltage/Current ●Control Power ●External ●Shaker Oil Pressure ●Module O/T ●Shaker Temp ●Shaker Travel



Applications:

      Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.
      Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Customization:

• Brand Name: LABTONE
• Model Number: EV222
• Place of Origin: CHINA
• Maximum Sine Force: 2200kg.f (22kN)
• Max Acceleration: 92g
• Air Requirement: 0.6 Mpa
• Frequency Range: 1 - 3000 Hz
• Amarture Diameter: 340 Mm

LABTONE EV222 is a Vibration Verification System that provides reliable and accurate vibration measurement and verification. It features maximum sine force up to 2200kg.f (22kN) with maximum acceleration of 92g and air requirement of 0.6 Mpa. It has a frequency range of 1-3000 Hz and amature diameter of 340 mm.


Support and Services:

Vibration Test System Technical Support and Service
We are committed to providing excellent technical support and service for our Vibration Test System. Our team is available 24/7 to answer questions, troubleshoot, and provide support for our product. We also provide a range of services, including installation, training, and repair. Our team is knowledgeable and experienced to ensure that our customers get the most out of their Vibration Test System.
We have a variety of resources to help customers understand and use the Vibration Test System, including detailed product manuals, online tutorials, and technical support videos. In addition, our team regularly hosts webinars and seminars to help customers get the most out of the Vibration Test System.
We are committed to providing our customers with the best technical support and service for the Vibration Test System. If you have any questions or need assistance, please do not hesitate to contact us.



Packing and Shipping:

Packaging and Shipping for Vibration Test System: The Vibration Test System is packed securely in a cardboard box and is shipped with a tracking number. The box is then placed into an outer shipping box for additional protection. The outer box is then sealed with tape to ensure that the contents stay secure during transit. The package is then shipped via an appropriate shipping method such as FedEx or UPS.

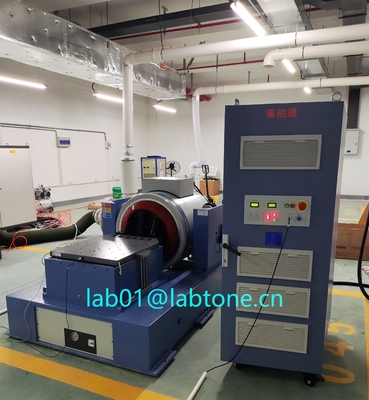

Customer case:
