Detailed Product Description
Product Name: Vibration Testing System Max Sine Force: 10 KN
Max Displacement: 50.8mmp-p Max Acceleration: 100G
Max Velocity: 200cm/s Amplifier Dimension: 800×550×1520 Mm
Frequency Range: 1 - 3000 Hz Max Payload: 300kg
High Light:

1000kg.F Force Vibration Test Equipment

,

IEC 60335-2-24 Vibration Test Equipment

,

IEC 60335-2-40 Vibration Test Machine

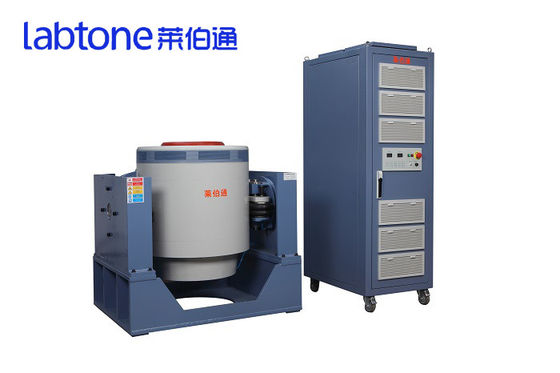

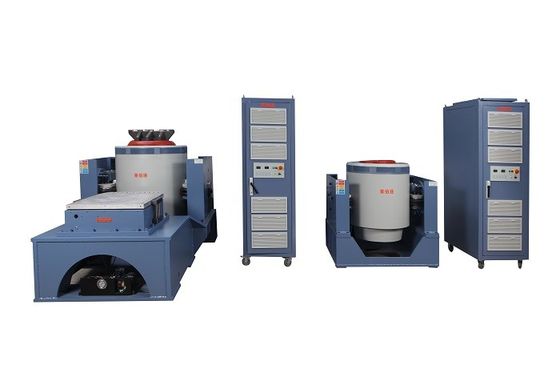

1000kg.f Force Vibration Test Equipment for IEC 60335-2-24 and IEC 60335-2-40




Vibration test equipment​ features:

  • Rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability
  • Load center airbag has high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation
  • High efficiency D class power switching, 3-sigma peak current, provide finest power consumption and minimize harmonic distortion
  • Quick self-diagnosis with safety interlock, high safety reliability
  • Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduce vibration transmittance
  • Provide horizontal and vertical expansion platform for different application
  • Simple controller operation











Specifications: EV203-EV220



Model EV203 EV206 EV210 EV220
Vibration Generator VG300/40 VG300/50 VG1000/50 VG2000/50
Frequency(Hz) 2-2500 2-3000 2-3000 2-2500
Max Exiting Force(kg.f) 300 600 1000 2000
Max. Displacement (mmp-p) 38 50 50 50
Max. Acceleration(g) 100 100 100 100
Max. Velocity(cm/s) 120 200 200 200
Payload(kg) 120 200 300 400
Armature Mass(kg) 3 6 10 20
Armature Diameter(mm) φ150 φ200 φ240 φ320
Cooling Method Forced Air Cooling
Vibration Generator Weight(kg) 460 920 1100 1600
Vibration Generator Dimension L*W*H(MM) 750*555*670 800*600*710 845*685*840 1200*870*1100
Power Amplifier Amp3k Amp6k Amp12k Amp22k
Cooling Method Forced Air Cooling
Power Amplifier Weight(kg) 250 320 350 500
Power Amplifier Dimension L*W*H(MM) 800*550*1250 800*550*1250 800*550*1520 800*550*1520
Utility
Requirements
3-phase AC380V ±10% 50Hz
Aggregate Capacity(KW) 9 20 25 35





Vibration battery test equipment Applicable Standards: IEC 60335-2-24 ,IEC 60335-2-40 MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.




Applicable Industries:

Automotive parts and systems – qualification testing
Electronic assembly, computer equipment testing
Avionics and military hardware testing
Satellite component testing
Product and package testing
General stress screening



Performance of Dynamic Shaker

The maximum acceleration level of an electromagnetic shaker is determined by the maximum current and the loading condition. At low frequency, displacement of moving part is limited such that the acceleration will not reach high level. The resonance frequency of the moving element is designed to be higher than the upper limit of the frequency range of the shaker.

Selection of Shaker Model

To choose a suitable vibration test system, the most important thing is to know the exciting force required to perform the vibration test. To evaluate and calculate the exciting force, the following data should be specified:

  • Frequency (frequency range)
  • Maximum Acceleration
  • Maximum Displacement
  • Maximum Velocity
  • Specimen Mass and Fixation

The specimen fixation is selected based on the upper limit of test frequency and specimen size, either vertical expansion platform or horizontal slip table. Specimen mass is needed to evaluate the required exciting force for vibration test.

Service



Pre-Sales Service

1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.



After-Sales Service

1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.



FAQ:

How do you attach the hardware you’re testing to your shaker?

By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.

How do you control shakers?

If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.

What are those resonances?Are they bad?

Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
